Partition Pladur® 78 (48-35) 2N MW

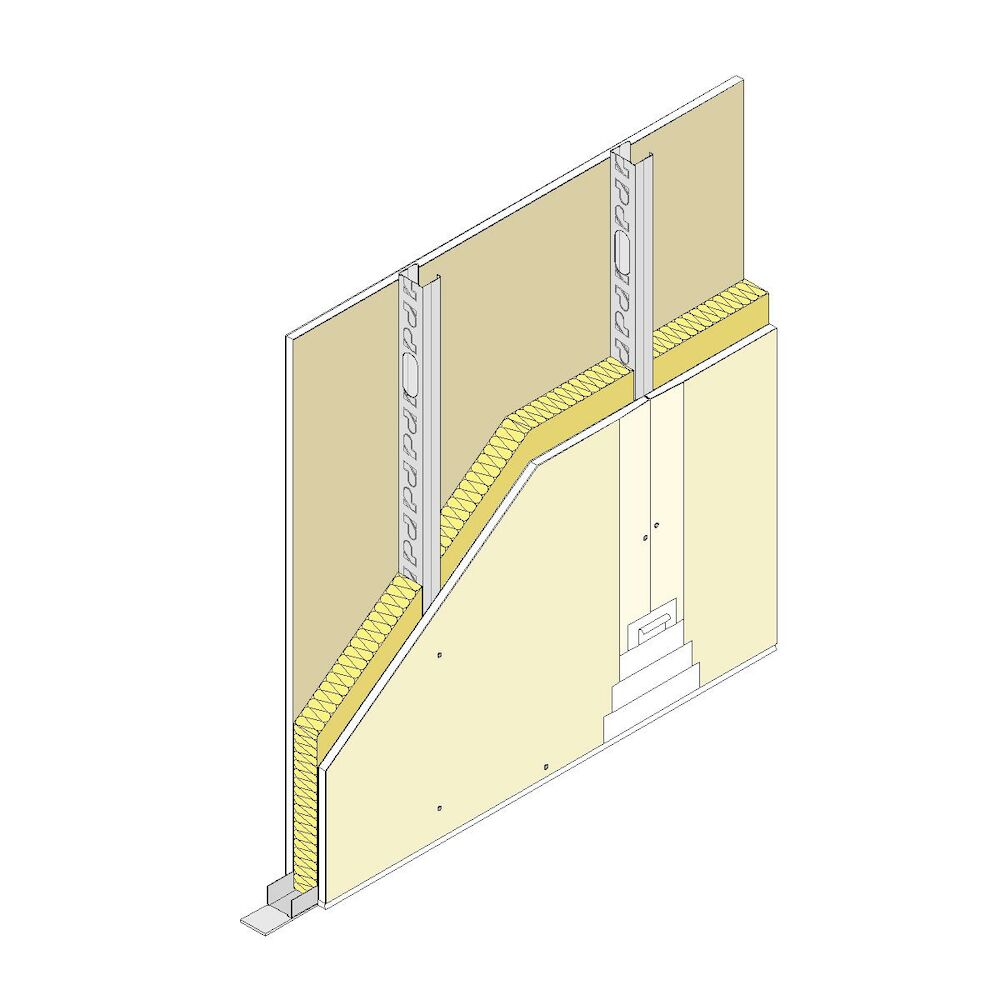

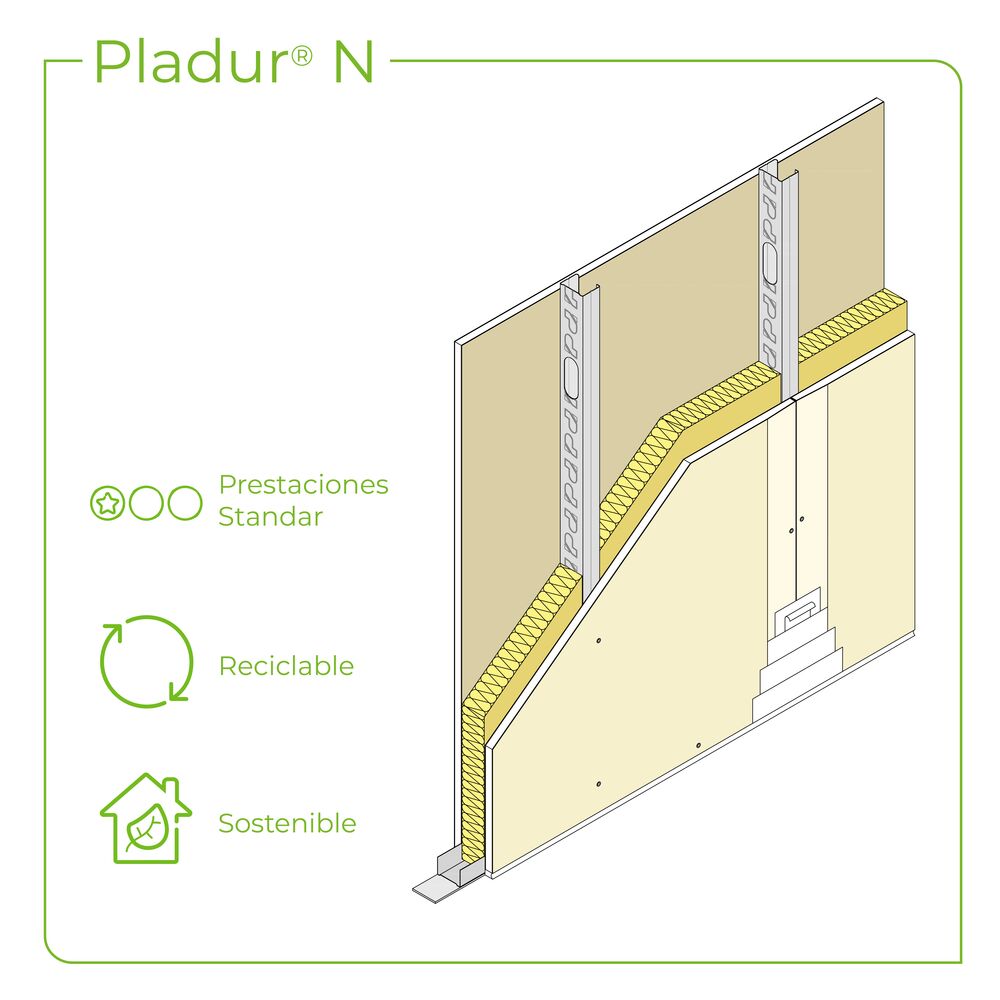

Partition made up of a Pladur® plasterboard screwed to each side of a galvanized steel structure, over Pladur® studs (vertical elements) and Pladur® channels (horizontal elements). Commensurate amounts of Pladur® materials: screws, compounds, joint tape, watertight/acoustic perimeter joints, etc., as well as anchors for channels on the floor and ceiling, etc. Completely finished with Quality Level 1 for tile finishes, laminates, furring, etc. Also with Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Core of the Pladur® structure filled completely with mineral wool. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.


Further information

Maximum height: 3350 mm
Fire resistance: EI 30
Acoustic insulation - RA: 43.5 dBA
System weigh: 26 kg/m²
Plasterboard: Pladur® N
Board thickness: 15 mm
Type of basic profile: Stud 48/35 Z1
System thickness: 78 mm
Number of layers: Simple
Fire report number: 0511260013
Acoustic report number: AC3-D7-92.7
Installation method: UNE 120043 Standard

Distribution walls for units with the same use.
