Ceiling Pladur® NEO

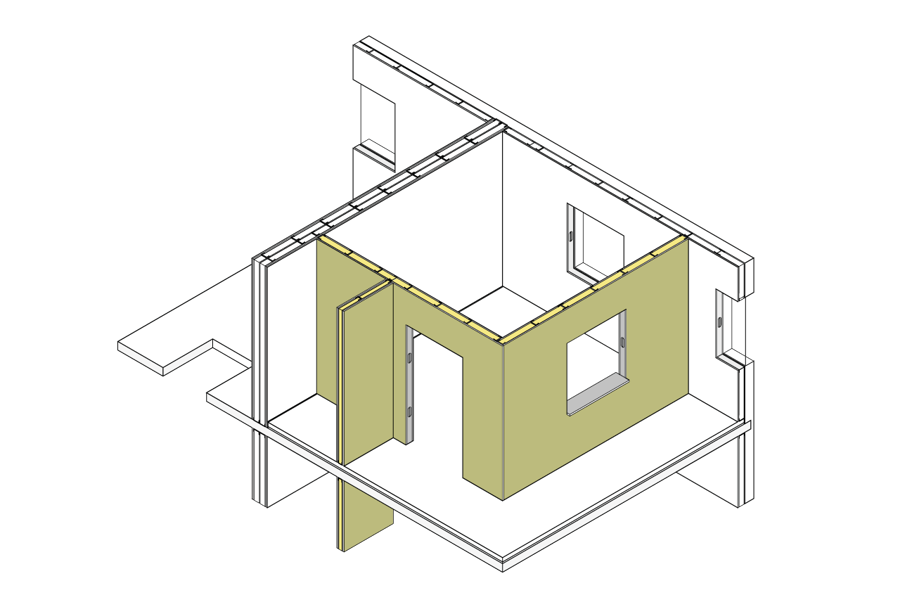

Partition made up of a Pladur® plasterboard screwed to each side of a galvanized steel structure, over Pladur® studs (vertical elements) and Pladur® channels (horizontal elements). Commensurate amounts of Pladur® materials: screws, compounds, joint tape, watertight/acoustic perimeter joints, etc., as well as anchors for channels on the floor and ceiling, etc. Completely finished with Quality Level 1 for tile finishes, laminates, furring, etc. Also with Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Core of the Pladur® structure filled completely with mineral wool. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.
Maximum height: 4950 mm
Fire resistance: EI 30
Acoustic insulation - RA: 46 dBA
System thickness: 106 mm
Maximum height: 6100 mm
Fire resistance: EI 30
Acoustic insulation - RA: 48 dBA
System thickness: 155 mm
Maximum height: 3500 mm
Fire resistance: EI 30
Acoustic insulation - RA: 43.5 dBA
System thickness: 78 mm
Maximum height: 4700 mm
Fire resistance: EI 30
Acoustic insulation - RA: 46 dBA
System thickness: 106 mm
Maximum height: 4050 mm
Fire resistance: EI 30
Acoustic insulation - RA: 43.5 dBA
System thickness: 92 mm
Maximum height: 6000 mm
Fire resistance: EI 30
Acoustic insulation - RA: 49 dBA
System thickness: 136 mm
Maximum height: 5650 mm
Fire resistance: EI 30
Acoustic insulation - RA: 49 dBA
System thickness: 126 mm
Maximum height: 5050 mm
Fire resistance: EI 30
Acoustic insulation - RA: 48 dBA
System thickness: 120 mm
Maximum height: 3500 mm
Fire resistance: EI 30
Acoustic insulation - RA: 43.5 dBA
System thickness: 78 mm
