PARTITION PLADUR® 136 (100-45) 2H1 MW

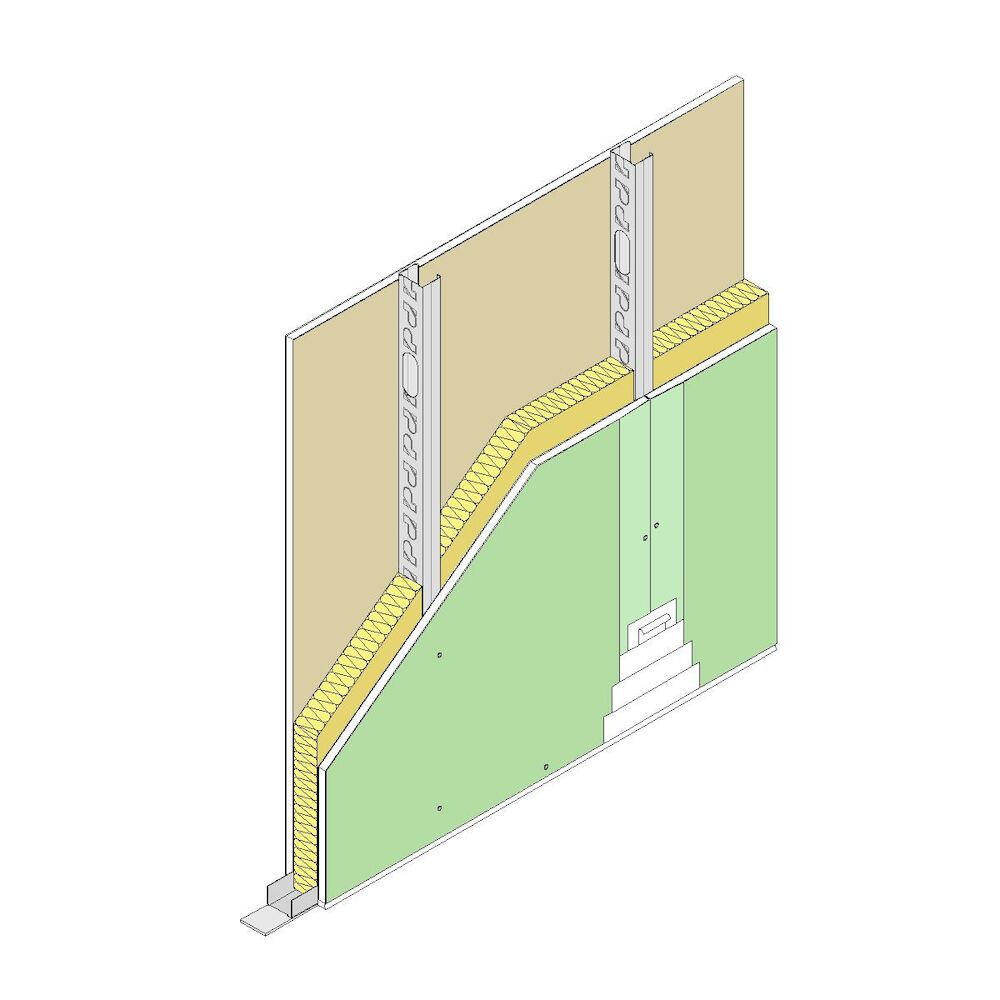

Partition made up of a Pladur® plasterboard screwed to each side of a galvanized steel structure, over Pladur® studs (vertical elements) and Pladur® channels (horizontal elements). Commensurate amounts of Pladur® materials: screws, compounds, joint tape, watertight/acoustic perimeter joints, etc., as well as anchors for channels on the floor and ceiling, etc. Completely finished with Quality Level 1 for tile finishes, laminates, furring, etc. Also with Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Core of the Pladur® structure filled completely with mineral wool. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.

BIM DOWLOAD AREA >

Further information
Maximum Height: 6000 mm
Fire Resistance Class: EI 60
Ra (Sound Insulation): 49 dBA
Weight per m²: 39.4 kg/m²
Board: Pladur® H1
Type of basic profile: Stud 100/45 XL Z1
Thickness: 136 mm
Number of Layers Text: Simple
Fire Report Number: 6363195
Acoustic Report Number: 10,05/100,109
Installation Method: UNE 120043 Standard
Application:

Distribution walls for units with the same use.
