Partition Pladur® 140 (90) 1SOLIDTEX-2N-1SOLIDTEX MW

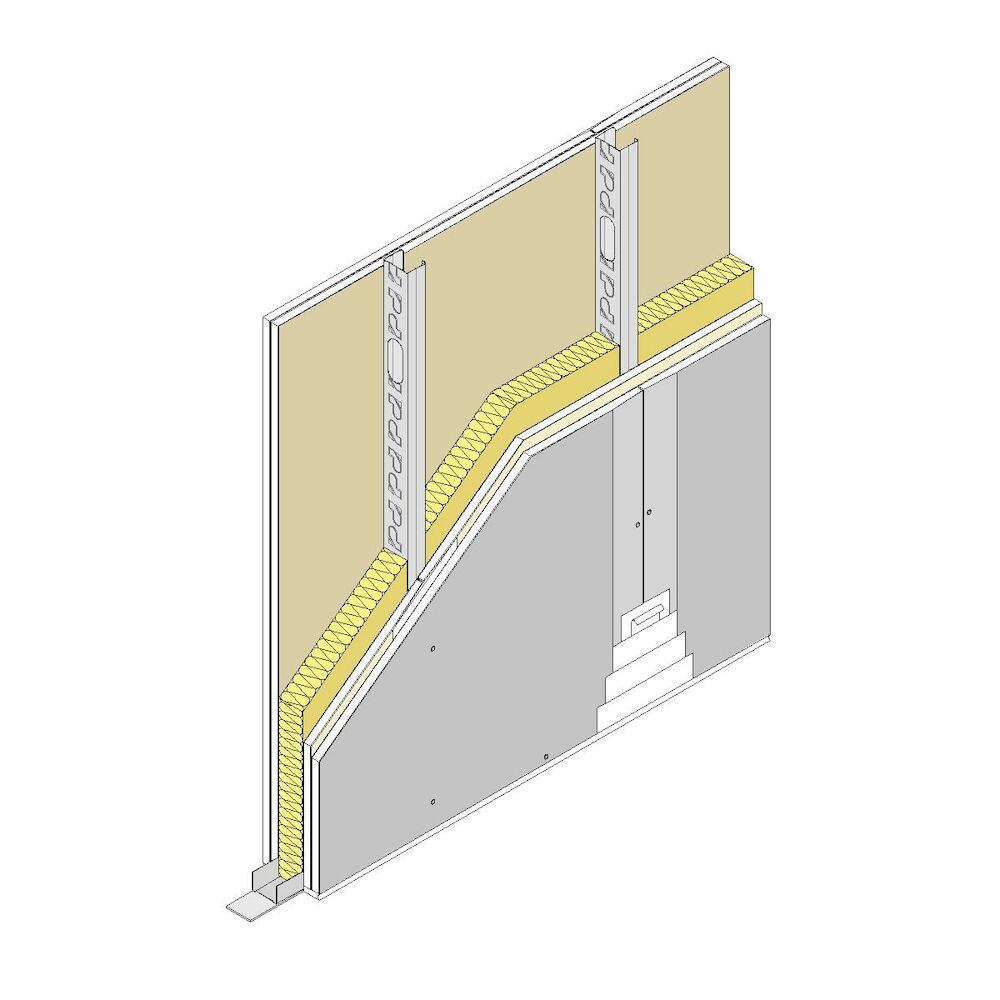

Partition made up of two Pladur® plasterboards screwed to each side of a galvanized steel structure, over Pladur® studs (vertical elements) and Pladur® channels (horizontal elements). Commensurate amounts of Pladur® materials: screws, compounds, joint tape, watertight/acoustic perimeter joints, etc., as well as anchors for floor and ceiling channels, etc. Completely finished with Quality Level 1 (Q1) for tile finishes, laminates, furring, etc. Also with Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Core of the Pladur® structure filled completely with mineral wool. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE


Further information

Maximum height: 6150 mm
Acoustic insulation - RA: 54 dBA
System weigh: 68.2 kg/m²
Plasterboard: Pladur® SOLIDTEX
Board thickness: 12.5 mm
Type of basic profile: Stud 90
System thickness: 140 mm
Number of layers: Double
Acoustic report number: 10.05/100.119
Installation method: UNE 120043 Standard

Distribution walls for units with the same use.
