Suspended single frame ceiling Pladur® T-45+PL-75 1x15 H1 MW

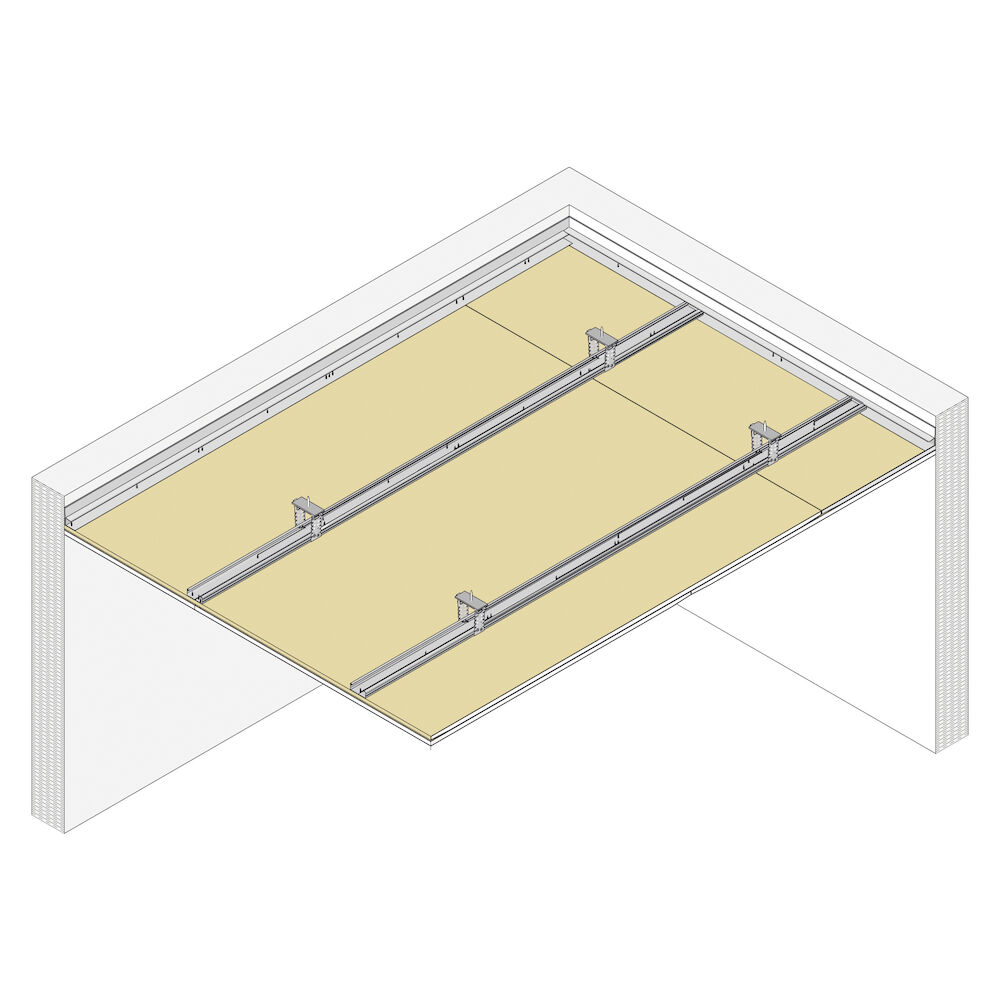

Suspended ceiling made up of a frame of galvanised sheet steel profiles over a base of Pladur® T-45 profiles or mullions hung from the framing by means of Pladur® standard reach brackets + Ø 6 mm threaded rod, and supported by Pladur® profiles attached mechanically along the whole perimeter. One or two Pladur® plasterboards are screwed to this frame. Commensurate amounts of Pladur® materials: screws, compounds, joint tape, resilient joints, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.


Further information

Airborne noise insulation - RA: 65 dBA
Impact noise insulation - Ln,w: 71 dB
RA increase (with 350 kg/m2 slab surface): 12 dBA
Ln,w reduction (with 350 kg/m2 slab surface): 7 dB
Maximum distance between hangers: 1100 mm
System weigh: 14.9 kg/m²
Plasterboard: Pladur® H1
Board thickness: 15 mm
Type of basic profile: Profile T-45
Number of layers: Simple
Acoustic report number: 10.05/300.116
Installation method: UNE 120043 Standard

Suspended ceilings for interior areas with acoustic insulation. For jobs that require a small plenum space.
