Suspended ceiling Pladur® T-60 1x13 FON+ R Aleatoria Plus 12-20-35 BV MW

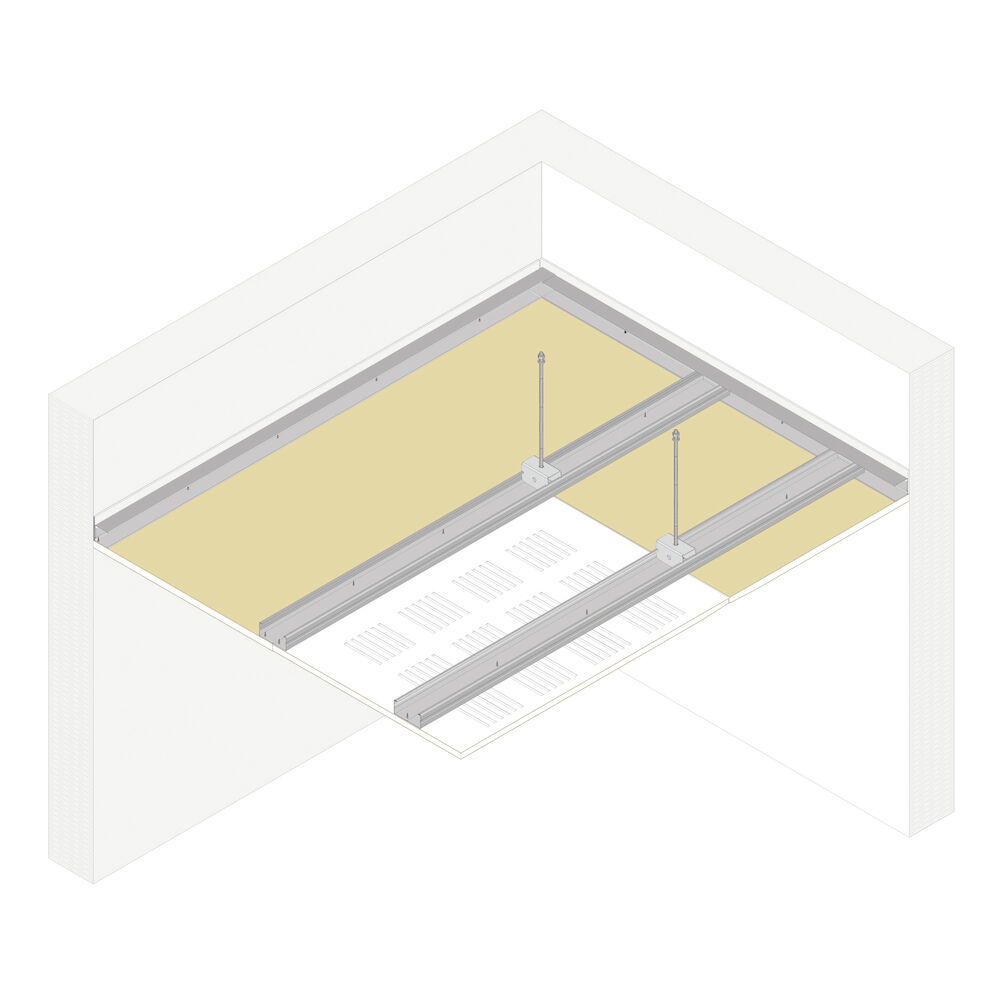

Suspended ceiling made up of a frame of galvanised sheet steel profiles over a base of Pladur® T-60 profiles set 300 mm apart, properly hung from the framing by means of Pladur® T-60 hanger brackets + Ø 6 mm threaded rod, and supported on Pladur® profiles attached mechanically around the whole perimeter. Pladur® Fon+ plasterboards are screwed to this frame. Commensurate amounts of Pladur® materials: screws, compounds, joint tape, resilient joints, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.

Further information

Absorption coefficient - αm: 0.53
Absorption coefficient - αw: 0.5
Maximum distance between hangers: 1200 mm
System weigh: 14 kg/m²
Plasterboard: Pladur® FON+ R Aleatoria Plus 12-20-35 BV
Board thickness: 12.5 mm
Type of basic profile: Profile T-60
Number of layers: Simple
Acoustic report number: AC14-26053711/1
Installation method: UNE 120043 Standard
Specifications:

Continuous ceilings that require special acoustic fitting-out for classrooms, meeting rooms, libraries, etc.
