Acoustic conditioning and decorative continuous FON+ - T-60 profiles

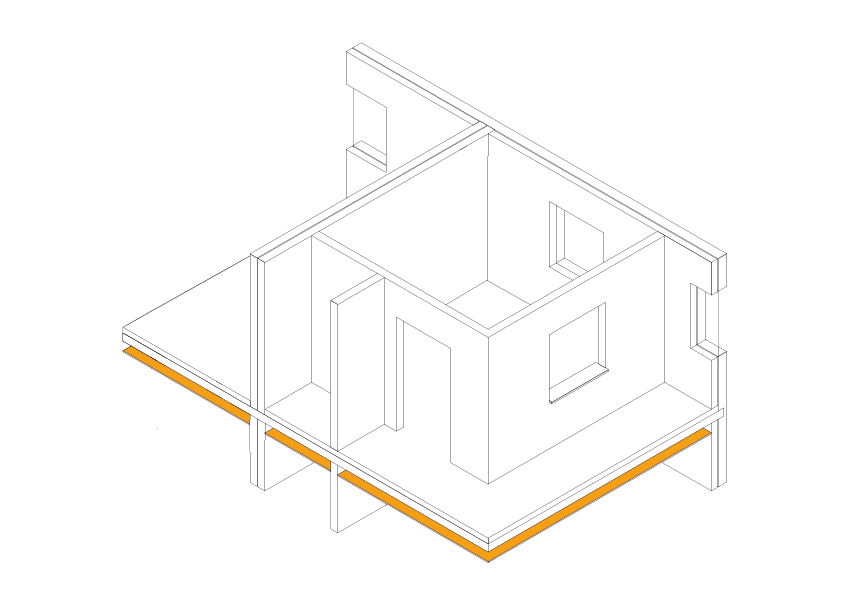

Suspended ceiling made up of a frame of galvanised sheet steel profiles over a base of Pladur® T-60 profiles set 300 mm apart, properly hung from the framing by means of Pladur® T-60 hanger brackets + Ø 6 mm threaded rod, and supported on Pladur® profiles attached mechanically around the whole perimeter. Pladur® Fon+ plasterboards are screwed to this frame. Commensurate amounts of Pladur® materials: screws, compounds, joint tape, resilient joints, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.
Filters
Suspended ceiling Pladur® T-60 1x13 FON+ C8/18 BV MW
System weigh: 14 kg/m²
Maximum distance between hangers: 1200 mm
Absorption coefficient - αw: 0.85
Suspended ceiling Pladur® T-60 1x13 FON+ R15/30 nº1 BA MW
System weigh: 14 kg/m²
Maximum distance between hangers: 1200 mm
Absorption coefficient - αw: 0.75
Suspended ceiling Pladur® T-60 1x13 FON+ C8/18 nº2 BA MW
System weigh: 14 kg/m²
Maximum distance between hangers: 1200 mm
Absorption coefficient - αw: 0.75
Suspended ceiling Pladur® T-60 1x13 FON+ R12/25 nº2 BA MW
System weigh: 14 kg/m²
Maximum distance between hangers: 1200 mm
Absorption coefficient - αw: 0.7
Suspended ceiling Pladur® T-60 1x13 FON+ L5x80 nº8 BA MW
System weigh: 14 kg/m²
Maximum distance between hangers: 1200 mm
Absorption coefficient - αw: 0.5
Suspended ceiling Pladur® T-60 1x13 FON+ R Aleatoria Plus 12-20-35 BV MW
System weigh: 14 kg/m²
Maximum distance between hangers: 1200 mm
Absorption coefficient - αw: 0.5
Suspended ceiling Pladur® T-60 1x13 FON+ R Aleatoria 8-15-20 BV MW
System weigh: 14 kg/m²
Maximum distance between hangers: 1200 mm
Absorption coefficient - αw: 0.6
Suspended ceiling Pladur® T-60 1x13 FON+ L5x80 nº4 BA MW
System weigh: 14 kg/m²
Maximum distance between hangers: 1200 mm
Absorption coefficient - αw: 0.55
Suspended ceiling Pladur® T-60 1x13 FON+ C12/25 nº2 BA MW
System weigh: 14 kg/m²
Maximum distance between hangers: 1200 mm
Absorption coefficient - αw: 0.8
