Independant lining Pladur® T-45+PL75 2x15N MW

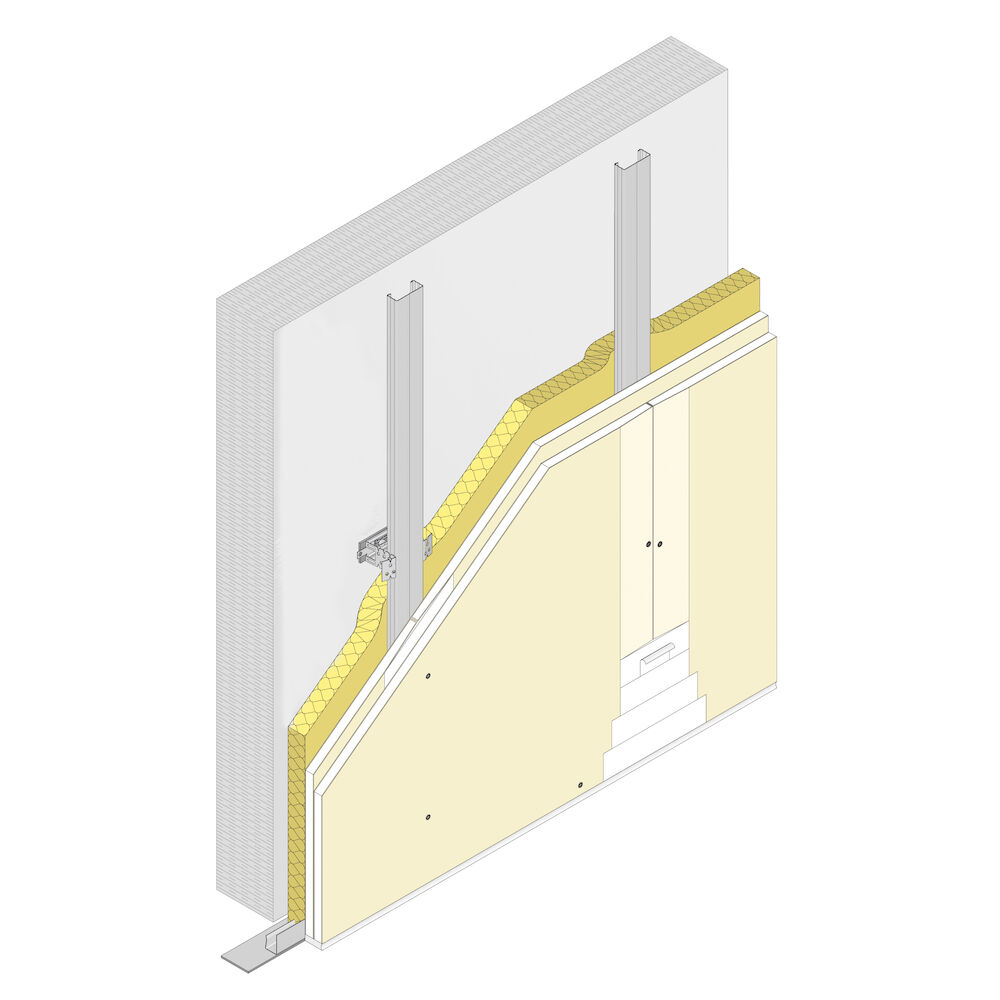

Independent lining made up of a structure of galvanised sheet steel profiles over T-45 profiles vertical elements) and Clip U track (horizontal elements), on whose interior side, the profiles need to be braced using standard reach brackets, leaving a space between the structure and the wall of a minimum of 10 mm. On the exterior side of this structure, one or more Pladur® plasterboards are screwed on. Commensurate amounts of Pladur® materials: screws, compounds, joint tape, watertight/acoustic perimeter joints, etc., as well as anchors for Clip U track, etc. Completely finished with Quality Level 1 (Q1) for tile finishes, laminates, furring, etc. Also with Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Core of each Pladur® structure filled completely with mineral wool. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.


Further information

Maximum height: 1300 mm
Acoustic insulation - RA: 57 dBA
RA increase (with 100 kg/m2 load bearing wall): 19 dBA
Acoustic insulation - RA,tr: 55 dBA
RA,tr increase (with 100 kg/m2 load bearing wall): 19 dBA
System weigh: 26 kg/m²
Plasterboard: Pladur® N
Board thickness: 15 mm
Type of basic profile: Profile T-45
System thickness: 58 mm
Number of layers: Double
Acoustic report number: 10.05/200.187

Interior and façade wall lining to increase thermal and acoustic insulation. It is used for all types of work, although it is highly suited for new construction, renovation and rehabilitation.
