Direct bond lining Pladur® 1x15H1

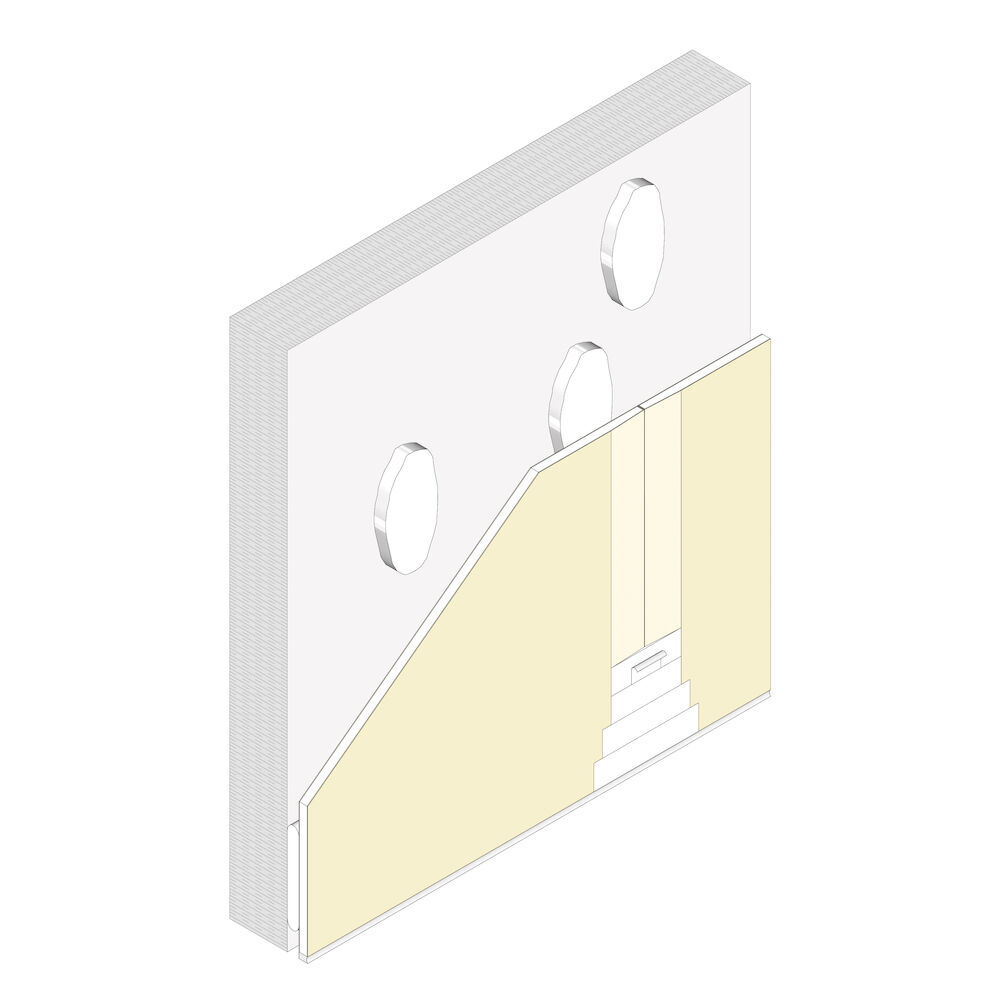

Direct bond lining made up of a Pladur® panel attached directly to a support wall with dollops of bonding compounds Pladur® (PA) placed every 400 mm in both directions. Commensurate amounts of Pladur® materials: joint compounds, bonding compound, joint tape, etc. Completely finished with Quality Level 1 (Q1) for tile finishes, laminates, furring, etc. Also with Level 2 (Q2), Level 3 (Q3) or Level 4 (Q4), according to the surface finish (to be determined by the design). Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.


Further information

Maximum height: 5000 mm
Acoustic insulation - RA: 40 dBA
RA increase (with 100 kg/m2 load bearing wall): 2 dBA
Acoustic insulation - RA,tr: 38 dBA
RA,tr increase (with 100 kg/m2 load bearing wall): 2 dBA
System weigh: 18.9 kg/m²
Plasterboard: Pladur® H1
Board thickness: 15 mm
System thickness: 25 mm
Acoustic report number: 10.05/200.102

Interior and façade wall lining. Especially suited for renovation and rehabilitation work.
