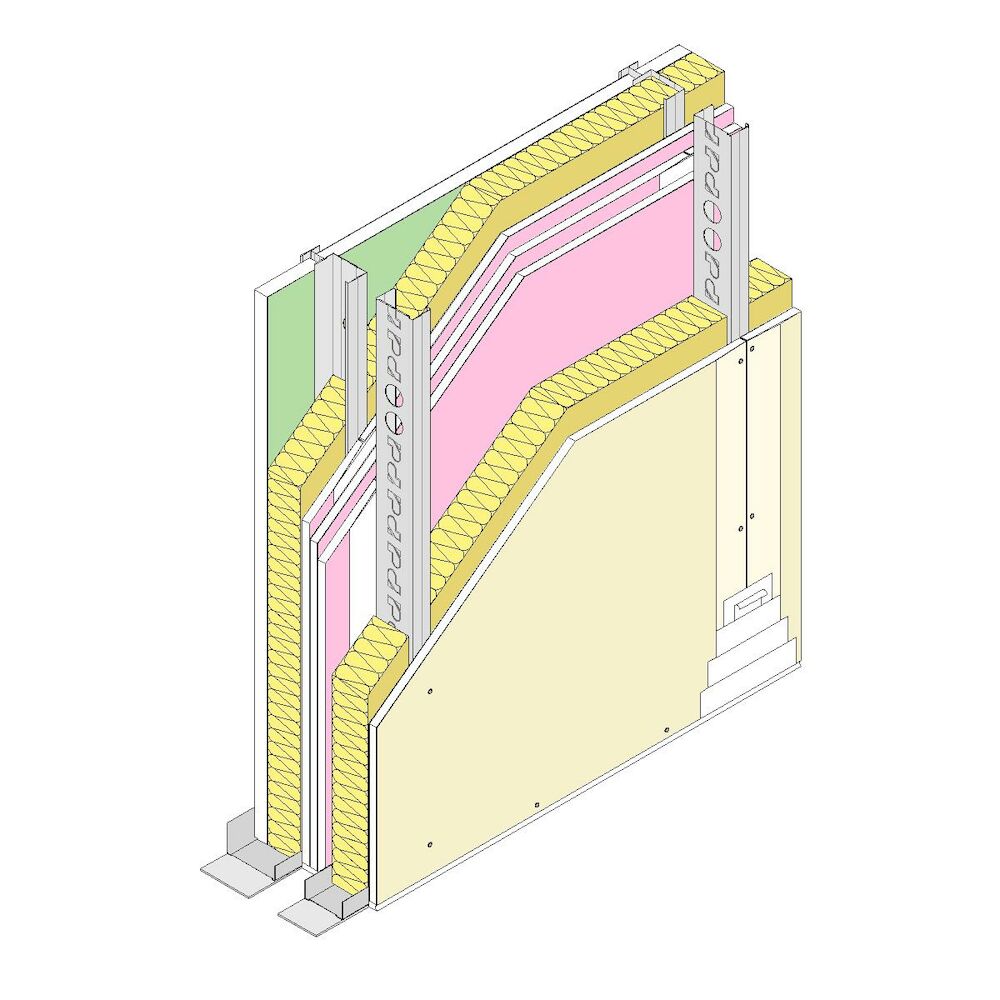

Partition made up of a structure of galvanised sheet steel metal profiles 90 mm wide and 0.7 mm thick, with Pladur® CH-90 studs and Pladur® E-90 studs (vertical elements), spaced 600 mm on centre, and Pladur® J-92 channels (horizontal elements). Toward the inaccessible side (hollow area) a partition face is created enclosing a Pladur® CH plasterboard 25 mm thick with E-90 first and last studs and CH-90 studs in between, having a continuous band of Pladur® intumescent acoustic sealant between both materials. On the accessible side of this partition, three 15mm thick Pladur® F plasterboards are screwed on, including joint treatment. Afterwards a self-bearing lining is applied, consisting of a structure of profiles of galvanized steel sheet metal on Pladur® studs and channels (horizontal elements), free, leaving a space between the structure and the partition of a minimum of 10 mm. On the exterior side of this structure one or more Pladur® plasterboards are screwed on. Commensurate amounts of Pladur® materials: screws, compounds, joint tape, resilient/acoustic perimeter joints, etc., as well as anchors for channels on the floor and ceiling, etc. Completely finished with Quality Level 1 (Q1) for tile finishes, laminates, furring, etc., with Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), except on the inaccessible side of the system. Core of each Pladur® structure filled completely with mineral wool. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.
