PARTITION PLADUR® 146 (48-35+(e=34)+48-35) 4N 2MW Arriostrado

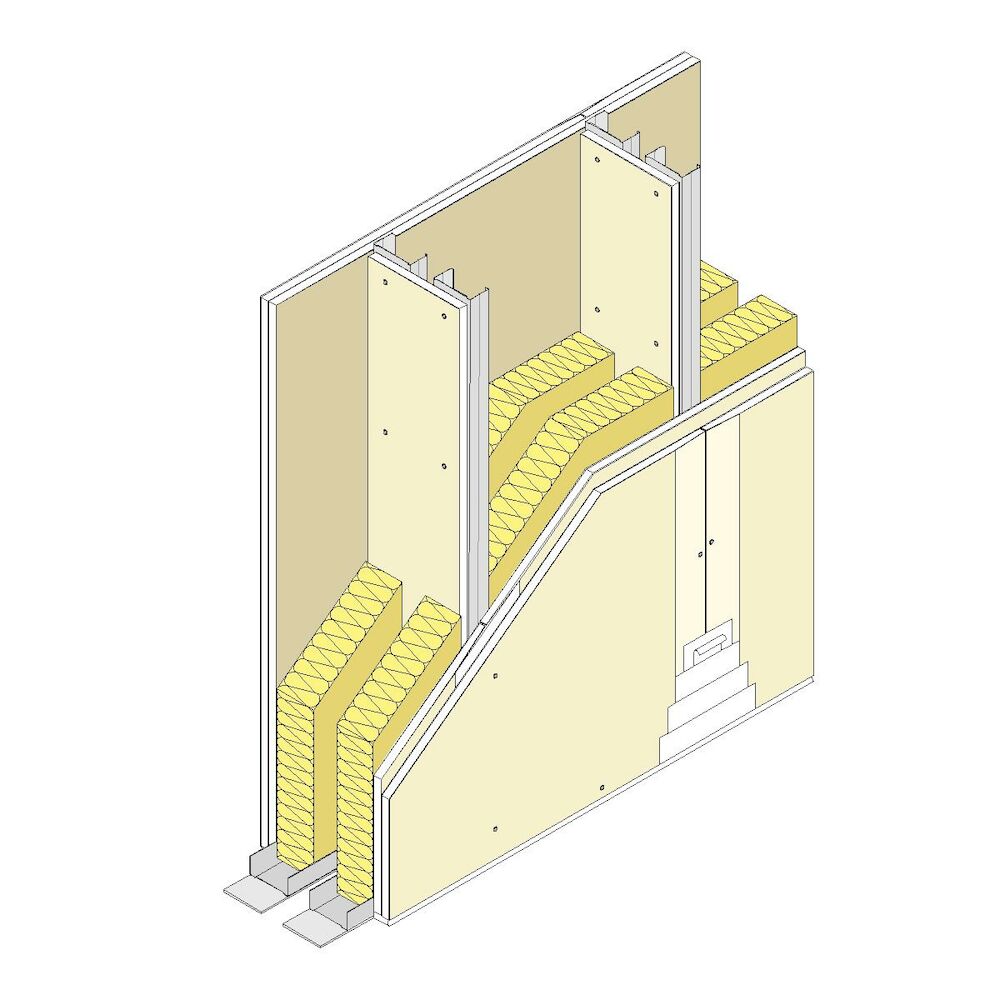

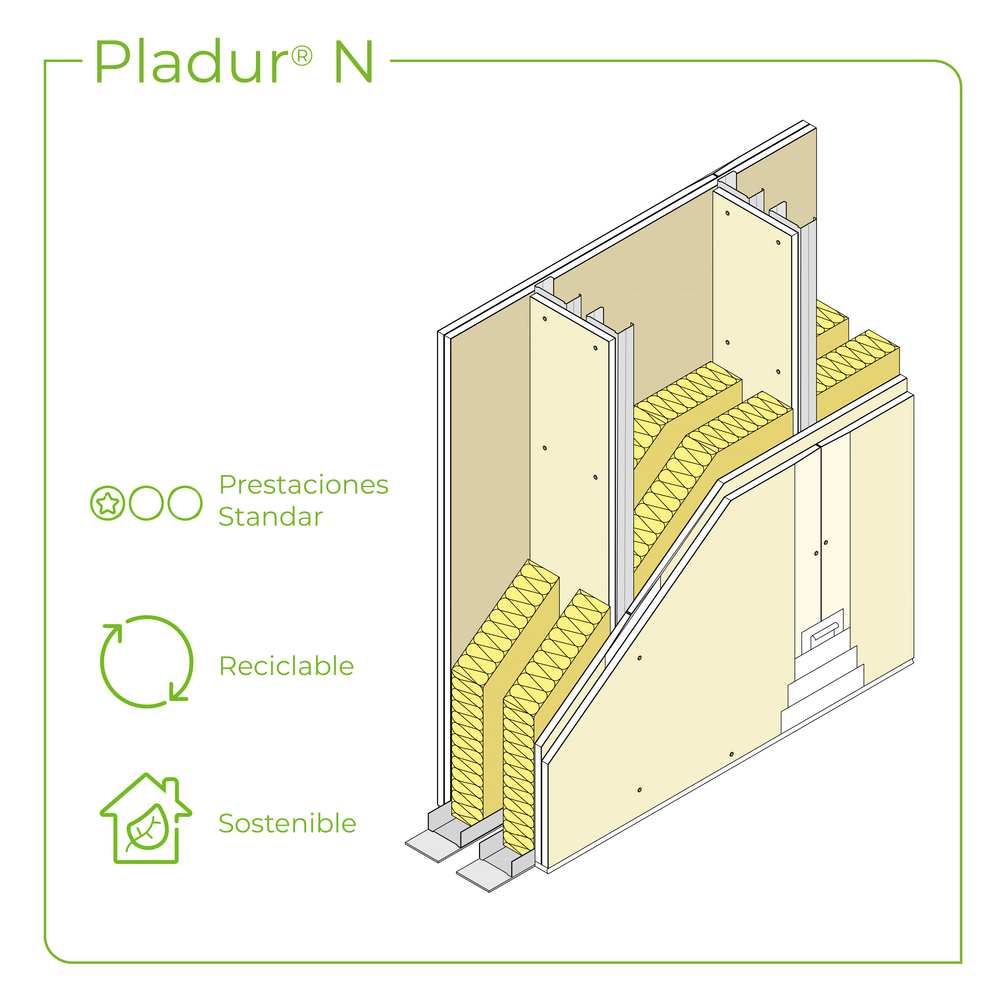

Partition made up of two Pladur® plasterboards screwed on each side to a double, braced structure of galvanised steel and set apart from each other a variable distance (minimum spacing of 10mm). Both structures are built on Pladur® studs (vertical elements) and Pladur® channels (horizontal elements). Commensurate amounts of Pladur® materials: screws, compounds, joint tape, resilient/acoustic perimeter joints, etc., as well as anchors for channels on the floor and ceiling, etc. Completely finished with Quality Level 1 for tile finishes, laminates, furring, etc. Also with Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Core of each Pladur® structure filled completely with mineral wool. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.

BIM DOWLOAD AREA >

Further information
Application:

Braced partitions capable of reaching considerable heights. Between use units and common areas of a building.

BIM DOWLOAD AREA >

Maximum Height: 7350 mm
Weight per m²: 47 kg/m²
