Partition Pladur® 252 (90+e+90) 4N 2MW Arriostrado

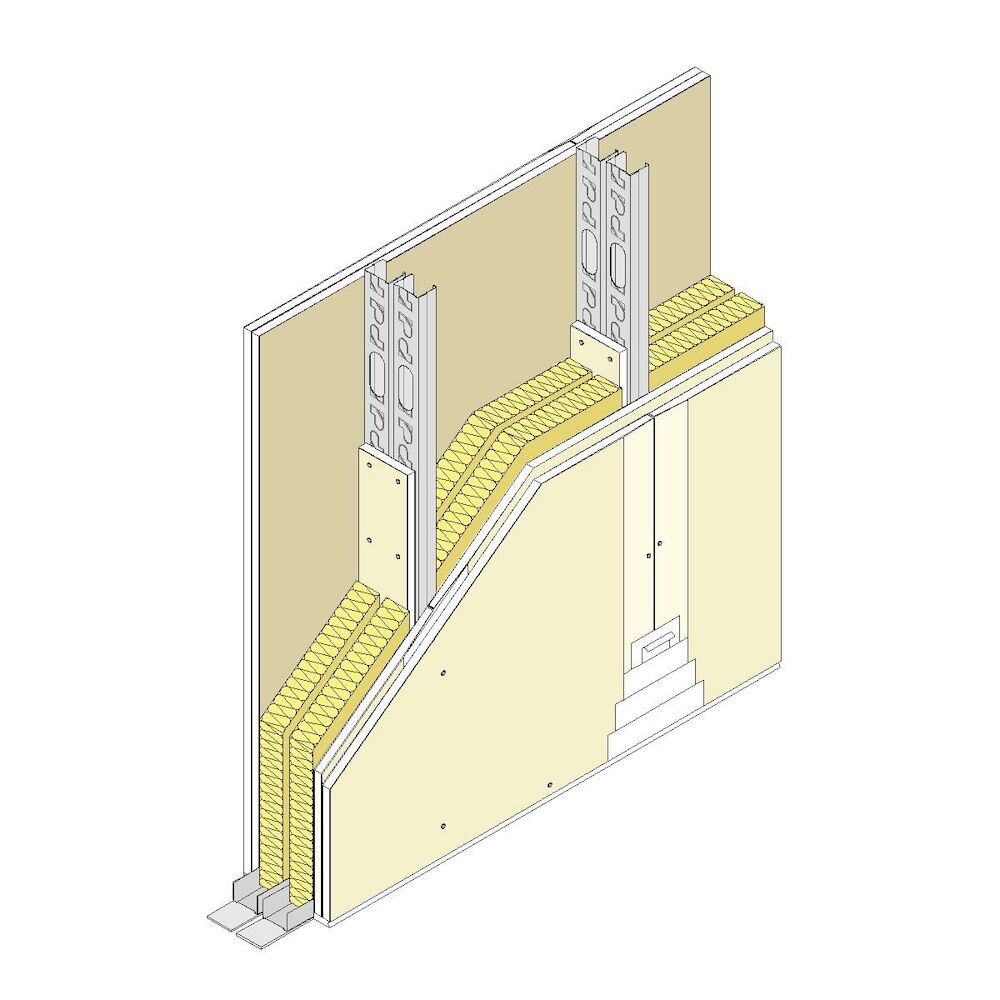

Partition made up of two Pladur® plasterboards screwed on each side of a double, braced structure of galvanised steel and spaced a minimum of 10 mm apart. Both structures are built on Pladur® studs (vertical elements) and Pladur® channels (horizontal elements). Commensurate amounts of Pladur® materials: screws, compounds, joint tape, resilient/acoustic perimeter joints, etc., as well as anchors for channels on the floor and ceiling, etc. Completely finished with Quality Level 1 (Q1) for tile finishes, laminates, furring, etc. Also with Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Core of each Pladur® structure filled completely with mineral wool. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.


Further information

Maximum height: 10750 mm
Fire resistance: EI 90
Acoustic insulation - RA: 55 dBA
System weigh: 67 kg/m²
Plasterboard: Pladur® N
Board thickness: 18 mm
Type of basic profile: Stud 90
System thickness: 262 mm
Number of layers: Double
Fire report number: 6363678
Acoustic report number: 10.05/100.242
Installation method: UNE 120043 Standard

Braced partitions capable of reaching great heights. Between use units and common areas of a building.
