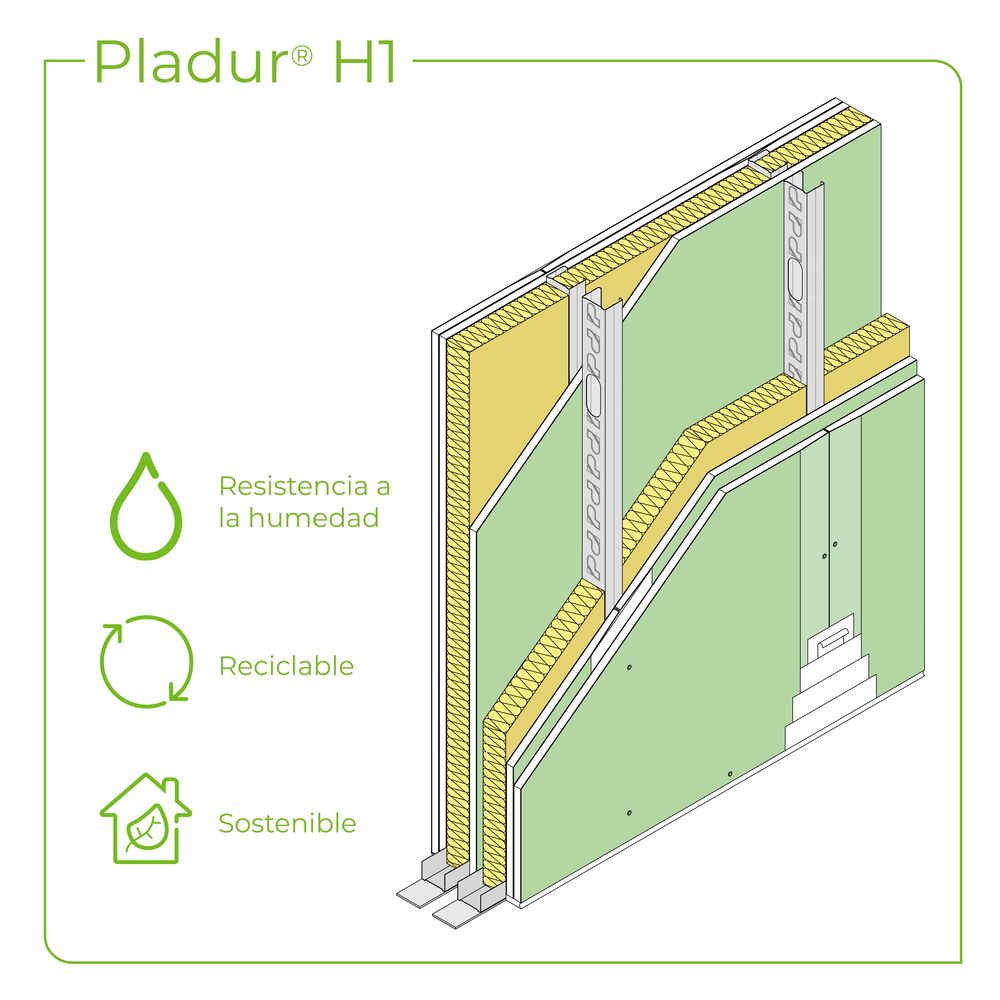

Partition Pladur® 290 (100-45+18+e+100-45) 5H1 2MW Free

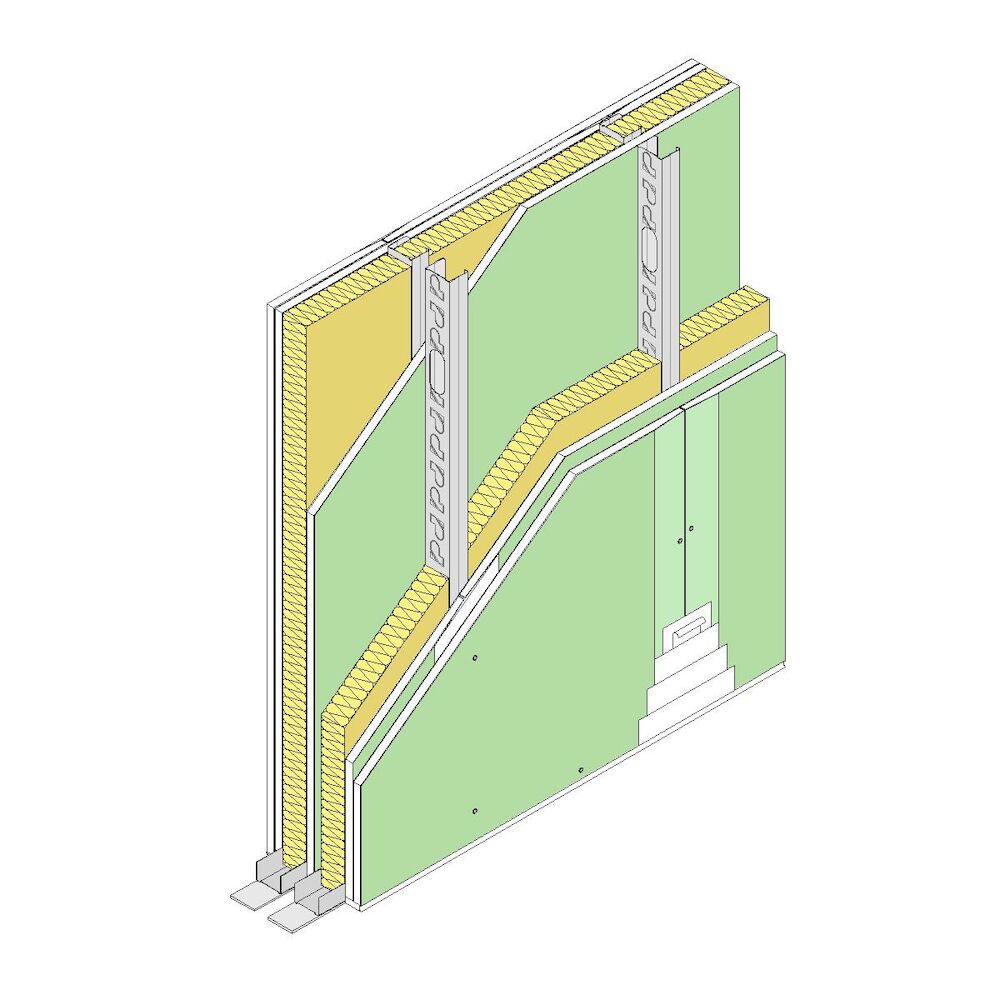

Partition made up of two Pladur® plasterboards screwed on each side to a free, twin frame of galvanised steel and set apart from each other a variable distance (minimum spacing of 10 mm + thickness of the middle plasterboard). Both structures are built on Pladur® studs (vertical elements) and Pladur® channels (horizontal elements). Commensurate amounts of Pladur® materials: screws, compounds, joint tape, resilient/acoustic perimeter joints, etc., as well as anchors for channels on the floor and ceiling, etc. Completely finished with Quality Level 1 (Q1) for tile finishes, laminates, furring, etc. Also with Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Core of each Pladur® structure filled completely with mineral wool. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.


Further information

Maximum height: 6000 mm
Fire resistance: EI 90
Acoustic insulation - RA: 76 dBA
System weigh: 92.8 kg/m²
Plasterboard: Pladur® H1
Board thickness: 18 mm
Type of basic profile: Stud 100/45 XL Z1
System thickness: 300 mm
Number of layers: Double
Fire report number: 6363680
Acoustic report number: 10.05/100.166
Installation method: UNE 120043 Standard

Separation walls between distinct use areas (between inhabitable premises, protected or not) and between these areas and other common areas of buildings. High acoustic performance solutions for being structures that are not connected to each other. Maximum height of the system is determined by the inertia of each one of the structures separately.
