Partition Pladur® 146 (48-35+e+48-35) 4I 2MW Free

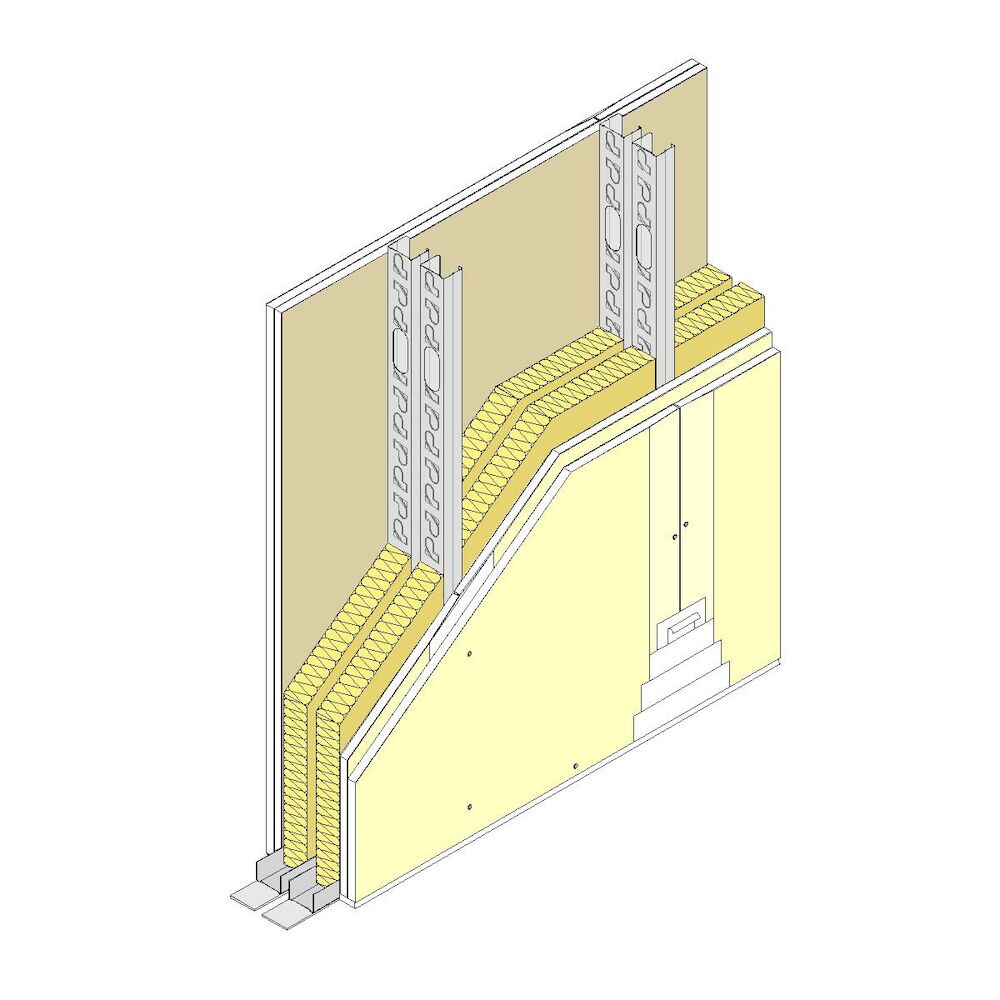

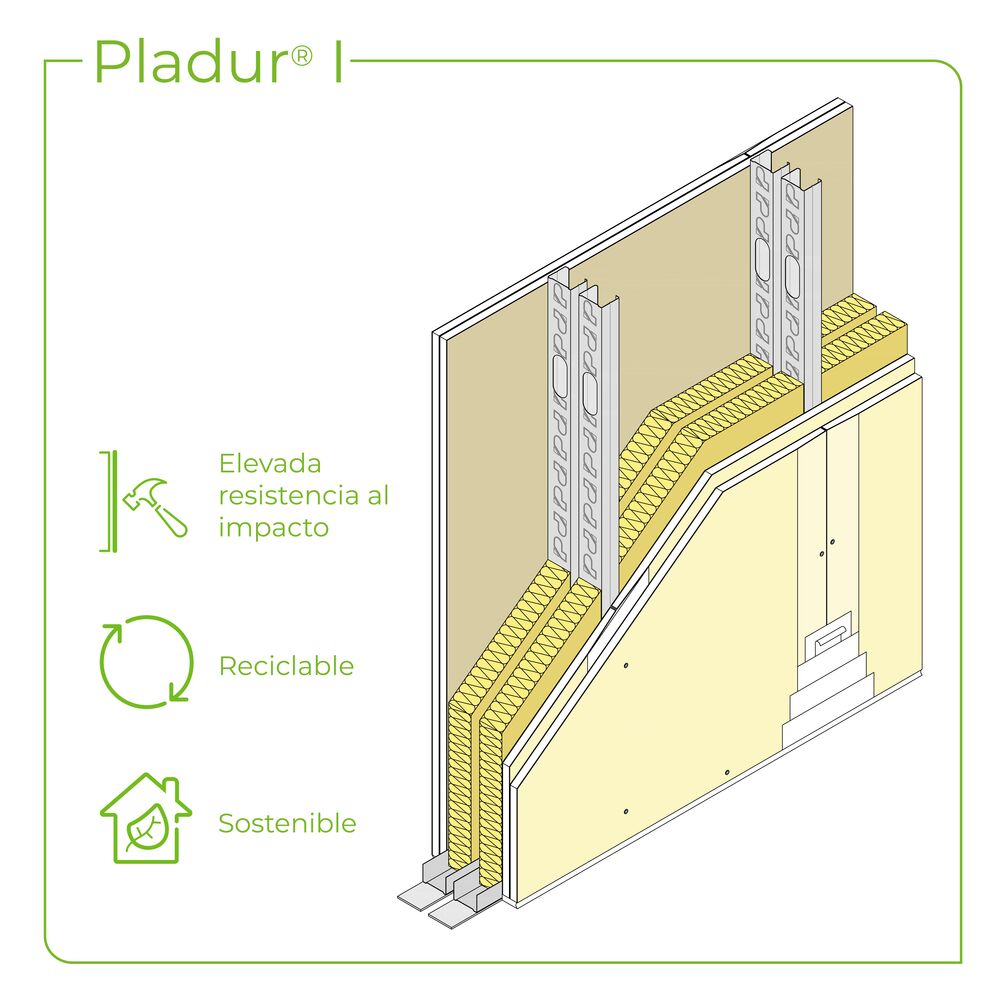

Partition made up of two Pladur® plasterboards screwed onto each side of a free, twin frame of galvanised steel and set apart a variable distance (10 mm minimum). Both structures are built on Pladur® studs (vertical elements) and Pladur® channels (horizontal elements). Commensurate amounts of Pladur® materials: screws, compounds, joint tape, resilient/acoustic perimeter joints, etc., as well as anchors for channels on the floor and ceiling, etc. Completely finished with Quality Level 1 (Q1) for tile finishes, laminates, furring, etc. Also with Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Core of each Pladur® structure filled completely with mineral wool. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.


Further information

Maximum height: 3350 mm
Fire resistance: EI 60
Acoustic insulation - RA: 62.8 dBA
System weigh: 55.2 kg/m²
Plasterboard: Pladur® I
Board thickness: 12.5 mm
Type of basic profile: Stud 48/35 Z1
System thickness: 156 mm
Number of layers: Double
Fire report number: 63632890
Acoustic report number: CTA-026-06-AER
Installation method: UNE 120043 Standard

Separation walls between distinct use areas (between inhabitable premises, protected or not) and between these areas and other common areas of buildings. High acoustic performance solutions for being structures that are not connected to each other. Maximum height of the system is determined by the inertia of each one of the structures separately.
