Partition Pladur® 120 (70-35) 2MAGNA MW

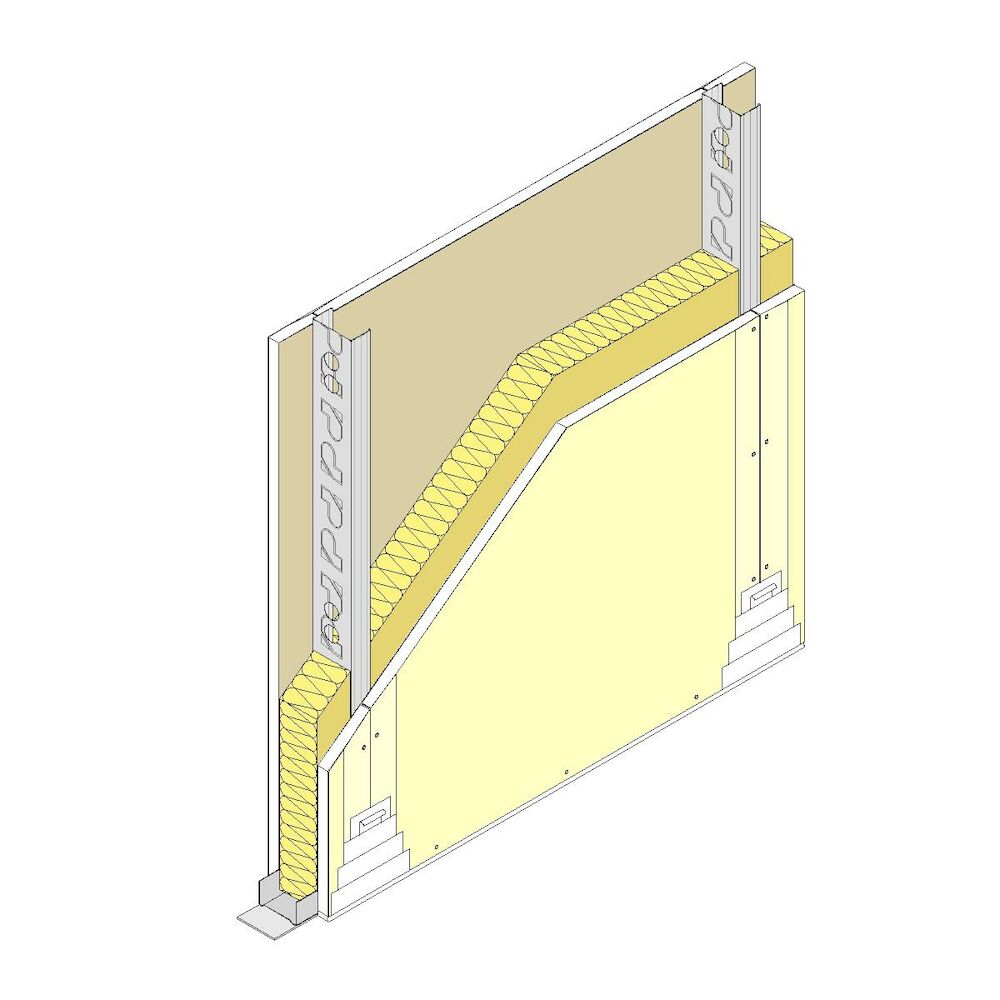

Partition made up of one or two Pladur® MAGNA plasterboards screwed to each side of a galvanized steel structure, over Pladur® studs (vertical elements) and Pladur® channels (horizontal elements). Commensurate amounts of Pladur® materials: screws, compounds, joint tape, watertight/acoustic perimeter joints, etc., as well as anchors for floor and ceiling channels, etc. Completely finished with Quality Level 1 (Q1) for tile finishes, laminates, furring, etc. Also with Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Core of the Pladur® structure filled completely with mineral wool. Installed according to Pladur® recommendations, DIT PLUS N.º 646p /20 and CTE requirements.


Further information

Maximum height: 6250 mm
Fire resistance: EI 120
System weigh: 70 kg/m²
Plasterboard: Pladur® MAGNA
Board thickness: 25 mm
Type of basic profile: Stud 70/35 Z1
System thickness: 120 mm
Number of layers: Simple
Fire report number: 9337162
Installation method: DIT PLUS N.º 646p /20
