Without hanger ceiling Pladur® M-48-35/SC 1x15 N MW

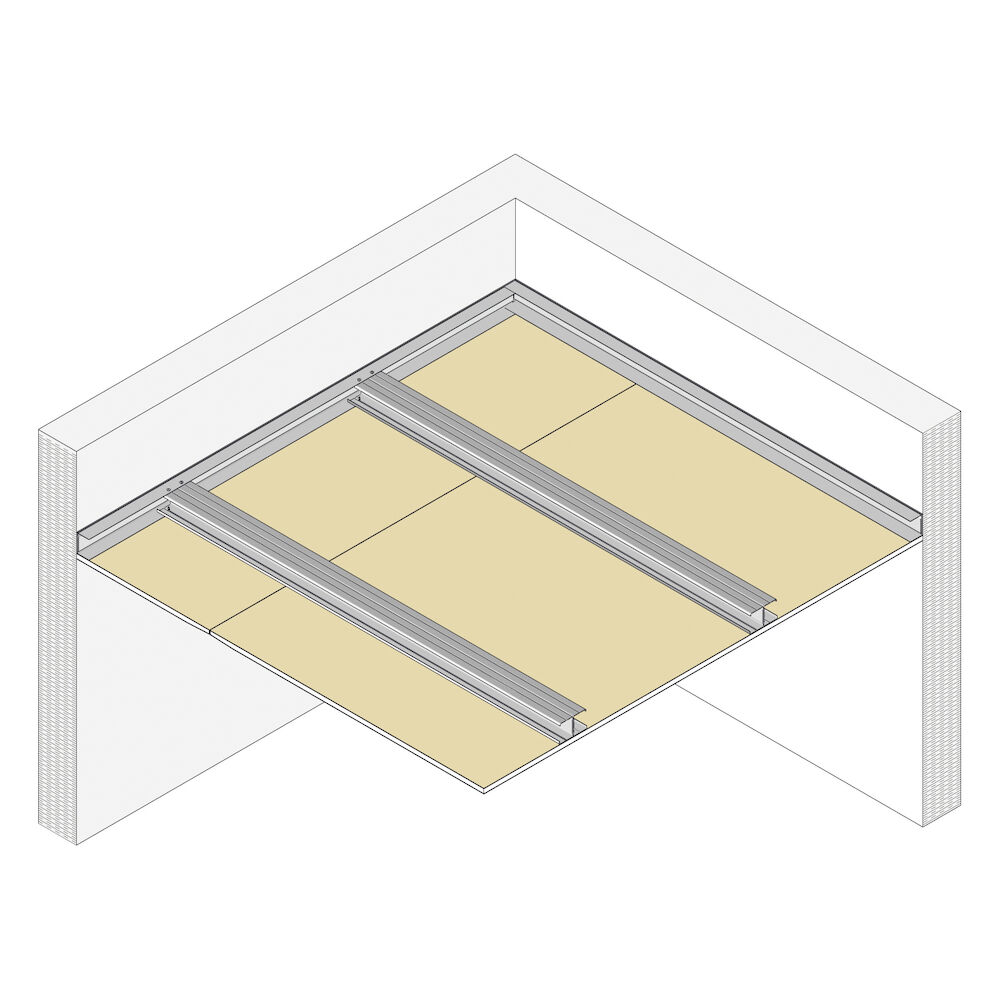

Continuous ceiling made up of a unique frame of Pladur® mullions supported on lateral support walls by means of Pladur® channels and attached mechanically around the whole perimeter. A Pladur® plasterboard is screwed onto this frame of profiles, with commensurate amounts of anchors, screws, resilient/acoustic perimeter joints, joint tapes, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Mineral wool over the back of the plasterboards and profiles. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.


Further information

Airborne noise insulation - RA: 65 dBA
Impact noise insulation - Ln,w: 71 dB
RA increase (with 350 kg/m2 slab surface): 12 dBA
Ln,w reduction (with 350 kg/m2 slab surface): 7 dB
System weigh: 14 kg/m²
Plasterboard: Pladur® N
Board thickness: 15 mm
Type of basic profile: Stud 48/35 Z1
Number of layers: Simple
Acoustic report number: 10.05/300.130
Installation method: UNE 120043 Standard

Continuous ceilings in cases where the arrangement of hangers with acoustic insulation properties is not possible.
