Ceiling Pladur® NEO
Click, Clack, Done
More information

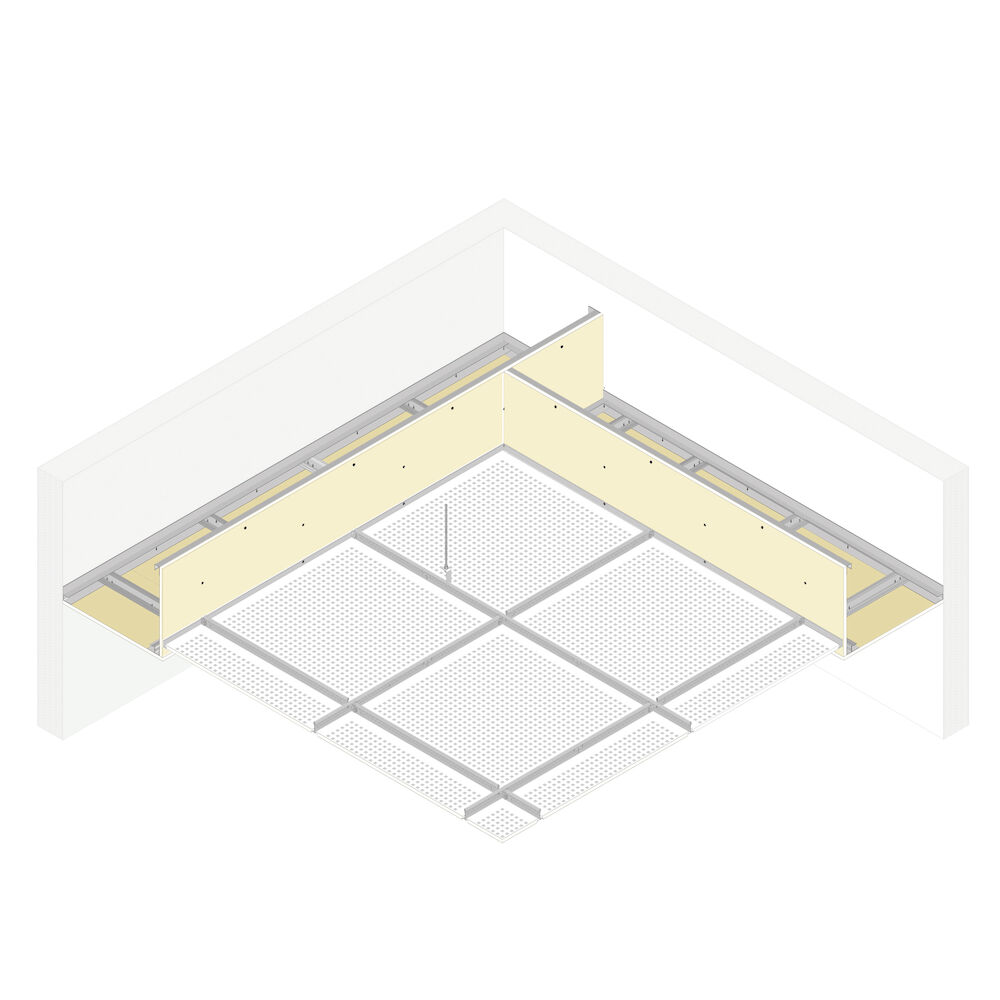

Registrable ceiling Pladur® FON+ L5x80 nº12 A MW
Suspended ceiling made up of a frame of galvanised sheet steel profiles covered with a pre-lacquered laminate on its face side. This frame forms a square 600 mm x 600 mm composed of primary, secondary and angular Pladur® galvanised sheet steel profiles attached mechanically around the whole perimeter. The frame is hung from the framing by means of anchors, threaded bar and pieces of Pladur® TR, on which the Pladur® Fon+ Decor plasterboards are supported. Commensurate amounts of anchors, hangers, hangers, etc. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.
Further information
Absorption coefficient - αm:
0.5
Absorption coefficient - αw:
0.45
Maximum distance between hangers:
1200 mm
System weigh:
12 kg/m²
Plasterboard:
Pladur® FON+ L5x80 nº12 A MW
Board thickness:
12.5 mm
Type of basic profile:
Main Runner and Cross Tee
Number of layers:
Simple
Acoustic report number:
AC15-26055261-25b
Specifications:
Suspended ceilings that require special acoustic conditioning or decorative use for classrooms, meeting rooms, libraries, etc.
Documents
