Registrable ceiling Pladur® FON+ C12/25 nº2 A MW

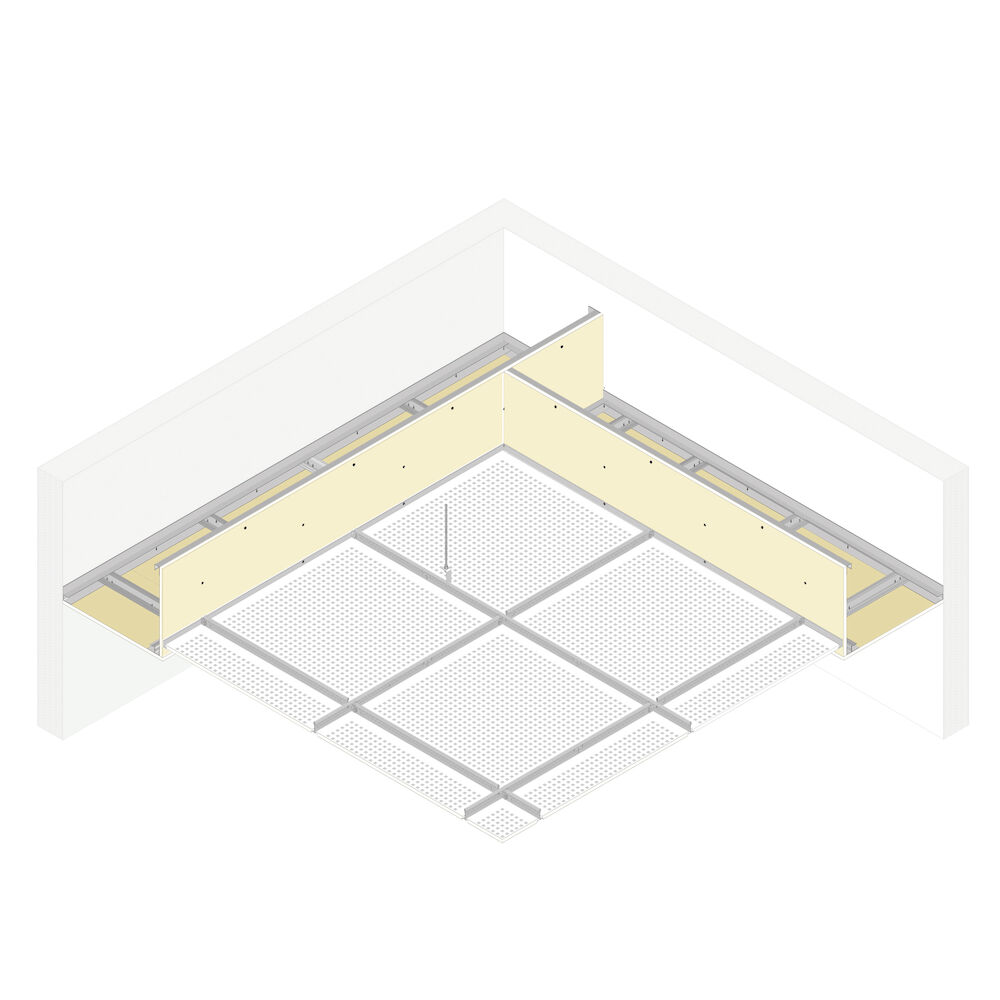

Suspended ceiling made up of a frame of galvanised sheet steel profiles covered with a pre-lacquered laminate on its face side. This frame forms a square 600 mm x 600 mm composed of primary, secondary and angular Pladur® galvanised sheet steel profiles attached mechanically around the whole perimeter. The frame is hung from the framing by means of anchors, threaded bar and pieces of Pladur® TR, on which the Pladur® Fon+ Decor plasterboards are supported. Commensurate amounts of anchors, hangers, hangers, etc. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.


Further information

Absorption coefficient - αm: 0.67
Absorption coefficient - αw: 0.65
Maximum distance between hangers: 1200 mm
System weigh: 12 kg/m²
Plasterboard: Pladur® FON+ C12/25 nº2 A MW
Board thickness: 12.5 mm
Type of basic profile: Main Runner and Cross Tee
Number of layers: Simple
Acoustic report number: AC14-26053711/42

Suspended ceilings that require special acoustic conditioning or decorative use for classrooms, meeting rooms, libraries, etc.
