Registrable ceiling Pladur® 600x600 DECOR 10

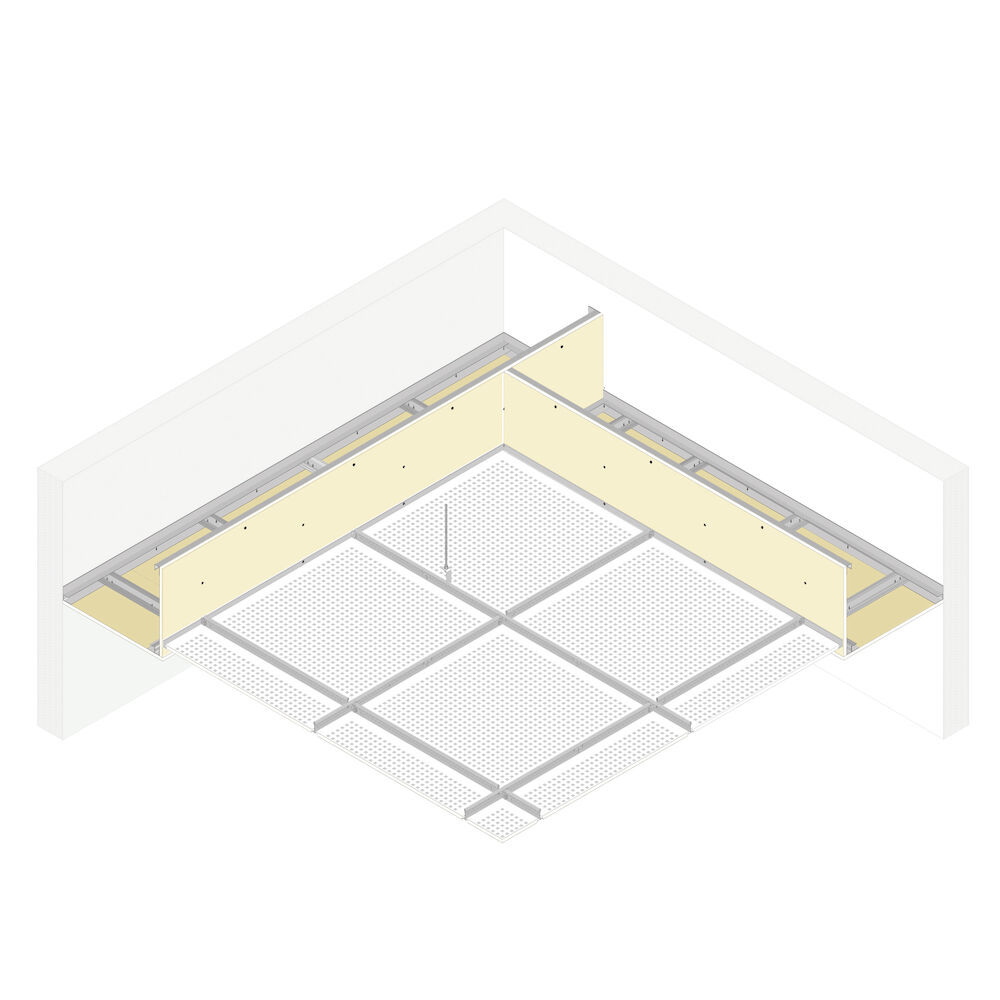

Suspended ceiling made up of a frame of galvanised sheet steel profiles covered with a pre-lacquered laminate on its face side. This frame forms a square 600 mm x 600 mm composed of primary, secondary and angular Pladur® galvanised sheet steel profiles attached mechanically around the whole perimeter. The frame is hung from the framing by means of anchors, threaded bar and pieces of Pladur® TR, on which the Pladur® Fon+ Decor plasterboards are supported. Commensurate amounts of anchors, hangers, hangers, etc. Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.

BIM DOWLOAD AREA >

Registrable ceiling Pladur® 600x600 DECOR 10

Further information

Maximum distance between hangers: 1200 mm
System weigh: 10 kg/m²
Plasterboard: Pladur® 600x600 DECOR 10
Type of basic profile: Main Runner and Cross Tee
Number of layers: Simple
Specifications:

Suspended ceilings that require special acoustic conditioning or decorative use for classrooms, meeting rooms, libraries, etc.
