Suspended single frame ceiling Pladur® M-90/S50 1x12,5 H1 MW

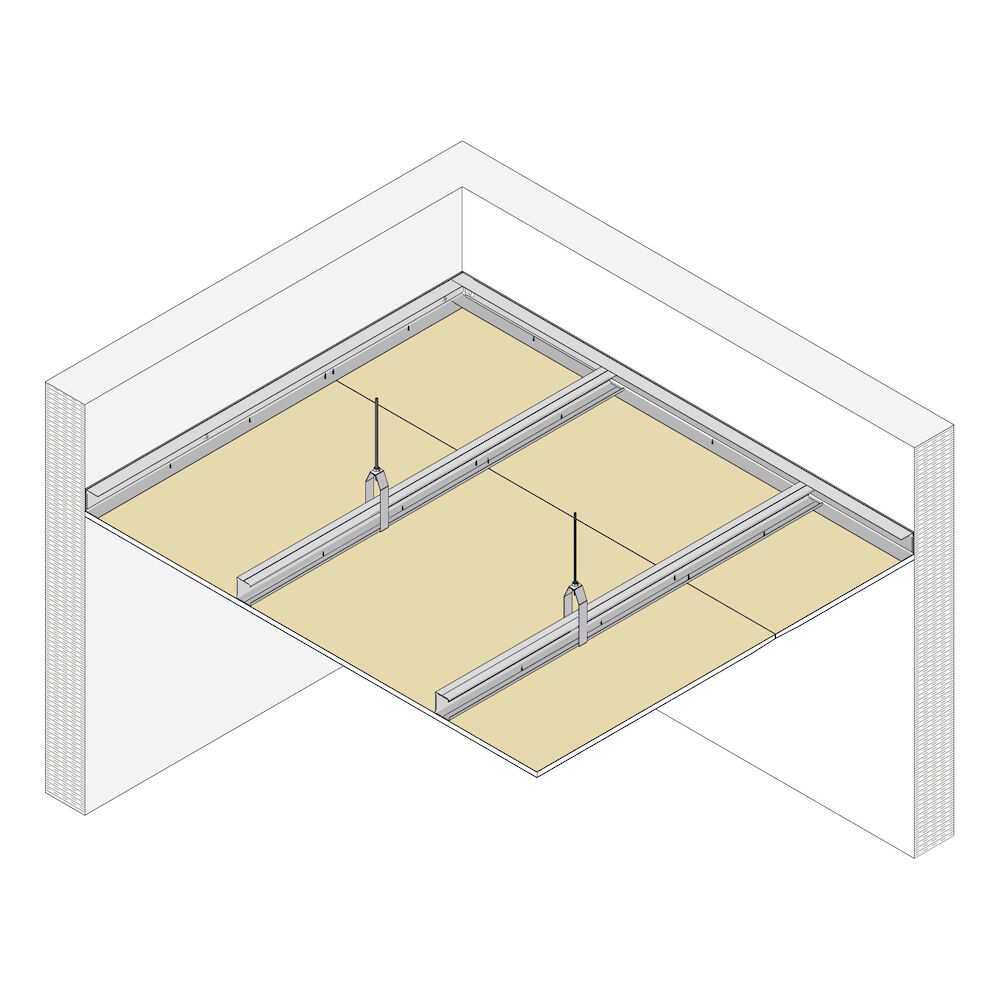

Suspended ceiling made up of a frame of galvanised sheet steel profiles over a base of Pladur® hung from the framing by means of Pladur® hanger brackets + Ø 6 mm threaded rod, and supported on Pladur® channels mechanically attached around the whole perimeter. One or more Pladur® plasterboards are screwed to this frame. Commensurate amounts of Pladur® materials: screws, compounds, joint tape, resilient joints, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.


Further information

Airborne noise insulation - RA: 64 dBA
RA increase (with 350 kg/m2 slab surface): 11 dBA
Ln,w reduction (with 350 kg/m2 slab surface): 9 dB
Maximum distance between hangers: 2250 mm
System weigh: 12 kg/m²
Plasterboard: Pladur® H1
Board thickness: 12.5 mm
Number of layers: Simple
Acoustic report number: 10.05/300.186

Continuous suspended ceilings for interior areas with acoustic insulation. Where a greater distance between hangers is required.
