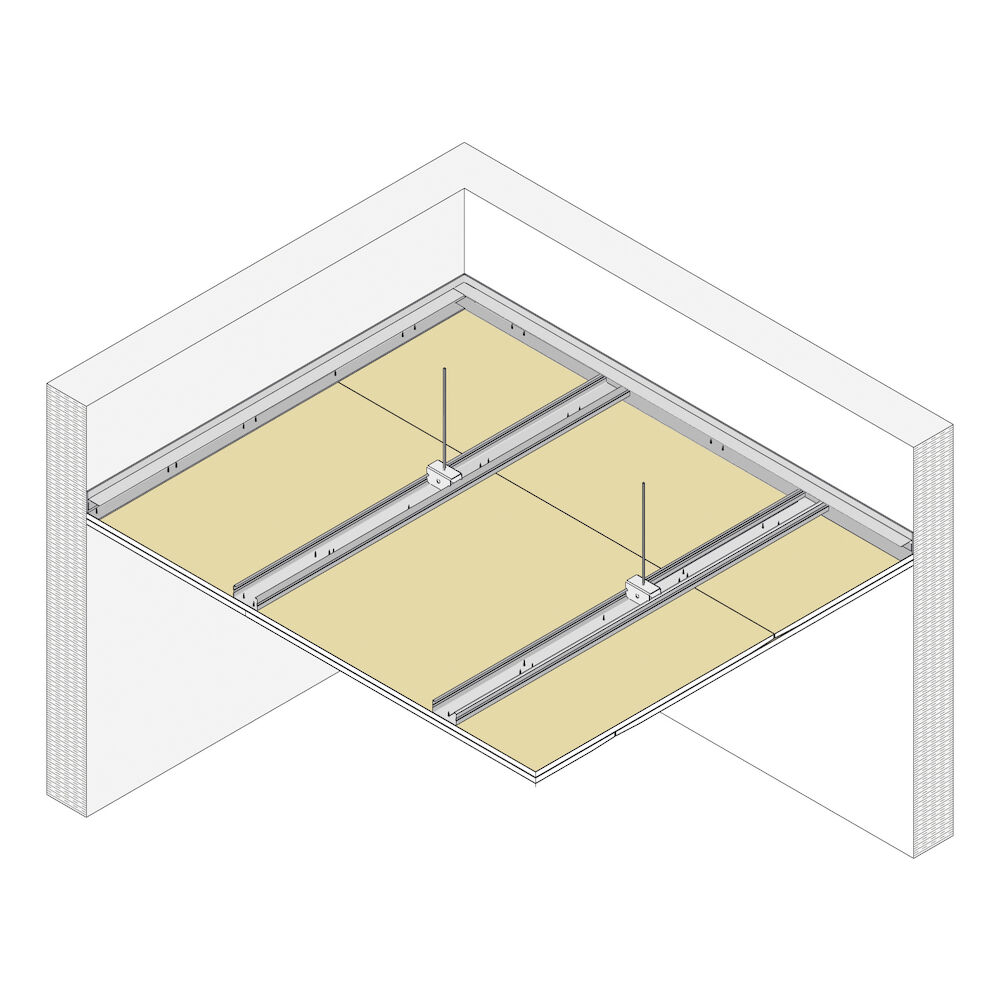

Suspended single frame ceiling Pladur® T-60 2x12,5 N MW

Suspended ceiling made up of a frame of galvanised sheet steel profiles over a base of Pladur® T-60 profiles hung from the framing by means of Pladur® T60 clips + Ø 6 mm threaded rod, and supported on Pladur® profiles attached mechanically around the whole perimeter. One or more Pladur® plasterboards are screwed to this frame. Commensurate amounts of Pladur® materials: screws, compounds, joint tape, resilient joints, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.

BIM DOWLOAD AREA >

Further information

Airborne noise insulation - RA: 68 dBA
Impact noise insulation - Ln,w: 69 dB
RA increase (with 350 kg/m2 slab surface): 15 dBA
Ln,w reduction (with 350 kg/m2 slab surface): 8 dB
Maximum distance between hangers: 1300 mm
System weigh: 22 kg/m²
Plasterboard: Pladur® N
Board thickness: 12.5 mm
Type of basic profile: Profile T-60
Number of layers: Double
Acoustic report number: 10.05/300.152
Installation method: UNE 120043 Standard
Specifications:

Continuous suspended ceilings for interior areas with fire resistance and acoustic insulation.
