Suspended ceiling Pladur® T-60 (D) 1x12,5 Air N MW

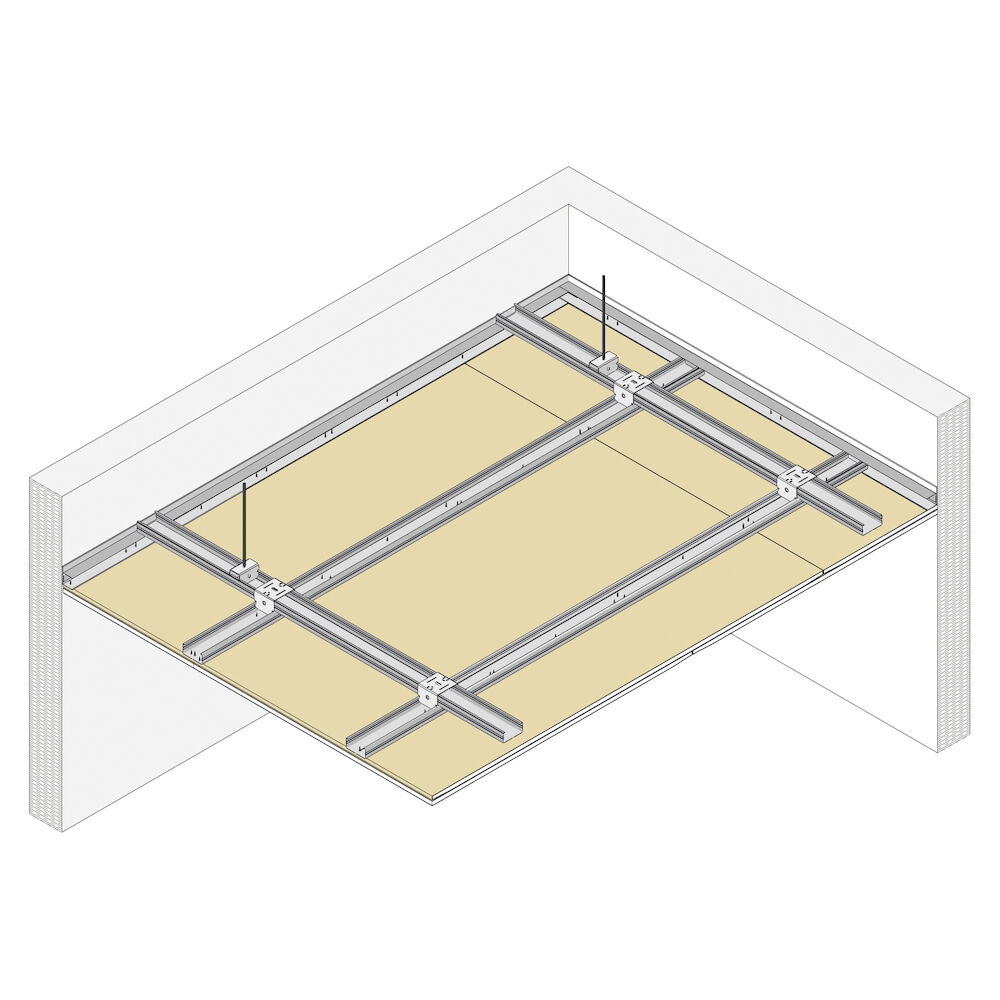

Suspended ceiling made up of a twin frame of galvanised sheet steel profiles installed at different levels (D). The primary frame is made up of Pladur® T-60 profiles hung from the framing by means of Pladur® T-60 hanger brackets and Ø 6 mm threaded rod. The secondary frame is made up of Pladur® T-60 profiles hung from the primary one by means of Pladur® channel intersection connector T-60 and supported around the perimeter with angular profiles o U track, which are attached mechanically around its whole length. One or more Pladur® plasterboards are screwed perpendicularly onto the secondary frame. Commensurate amounts of anchors, hangers, screws, resilient/acoustic perimeter joints, joint compounds and tapes, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.


Further information

Airborne noise insulation - RA: 62 dBA
Impact noise insulation - Ln,w: 67 dB
RA increase (with 350 kg/m2 slab surface): 9 dBA
Ln,w reduction (with 350 kg/m2 slab surface): 11 dB
Maximum distance between hangers: 1000 mm
System weigh: 13 kg/m²
Plasterboard: Pladur® Air N
Board thickness: 12.5 mm
Type of basic profile: Profile T-60
Number of layers: Simple
Acoustic report number: 10.05/300.161
Installation method: UNE 120043 Standard

Continuous suspended ceilings for interior areas with acoustic insulation and fire resistance. Offers greater ease of installation and reduced deformability for having a twin frame arranged crosswise to each other. The joining of both frames by means of T-60 hanger brackets form a set (moveable joint) that allows adjustments in the installation of the plasterboards.
