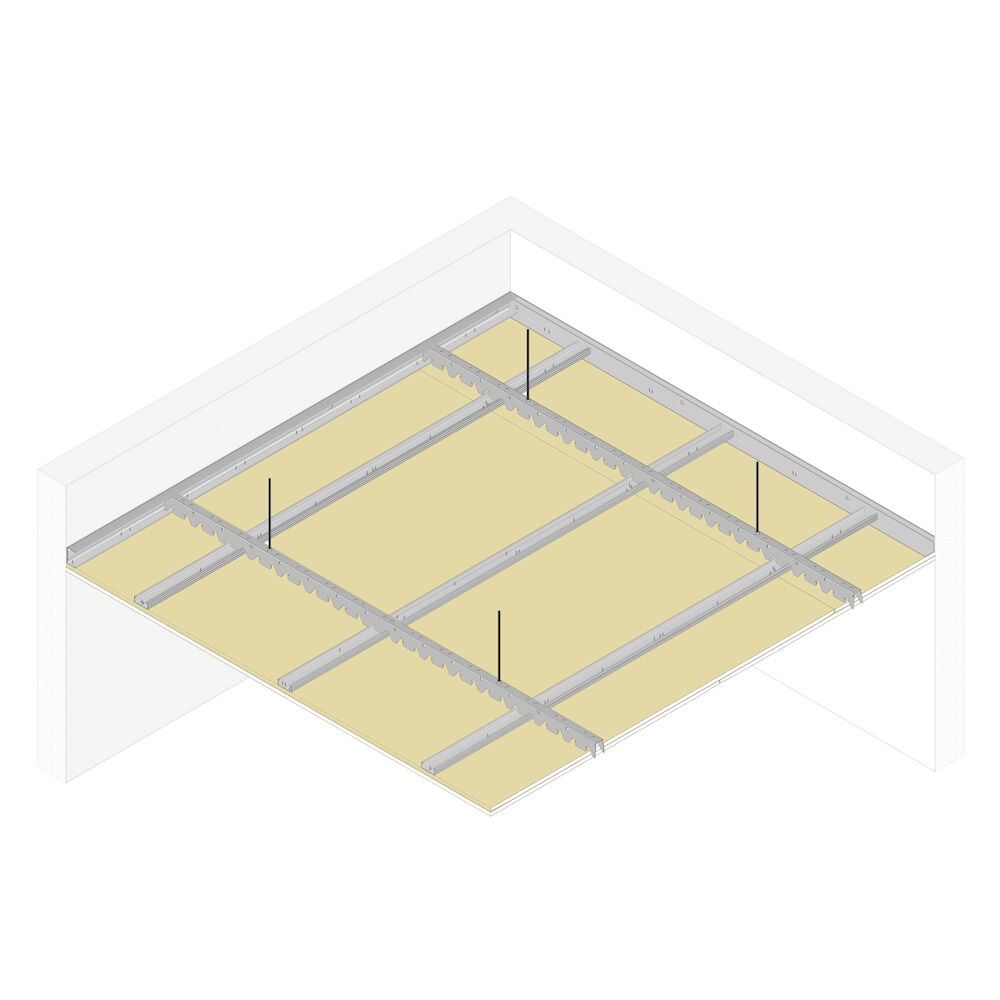

Suspended ceiling made up of a twin frame of galvanised sheet steel profiles installed at different levels. The primary frame is made up of Pladur® PH-45 hung from the framing by means of Ø 6 mm threaded rod, nut and locking nut. The secondary frame is made up of Pladur® +T-45 profiles fitted perpendicularly to the lower part of the primary frame by fitting directly on the double, die-cut hangers of the Pladur® PH-45 profile and supported around the perimeter on Pladur® angular profiles or U track Clip, which is attached mechanically along its whole length. One or more Pladur® plasterboards are screwed perpendicularly onto the secondary frame. Commensurate amounts of anchors, hangers, hangers, resilient/acoustic perimeter joints, joint compounds and tapes, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design.) Installed according to Pladur® recommendations, UNE 102043 and CTE requirements.
