Suspended ceiling Pladur® PH-45+T-45 1x15 H1 MW

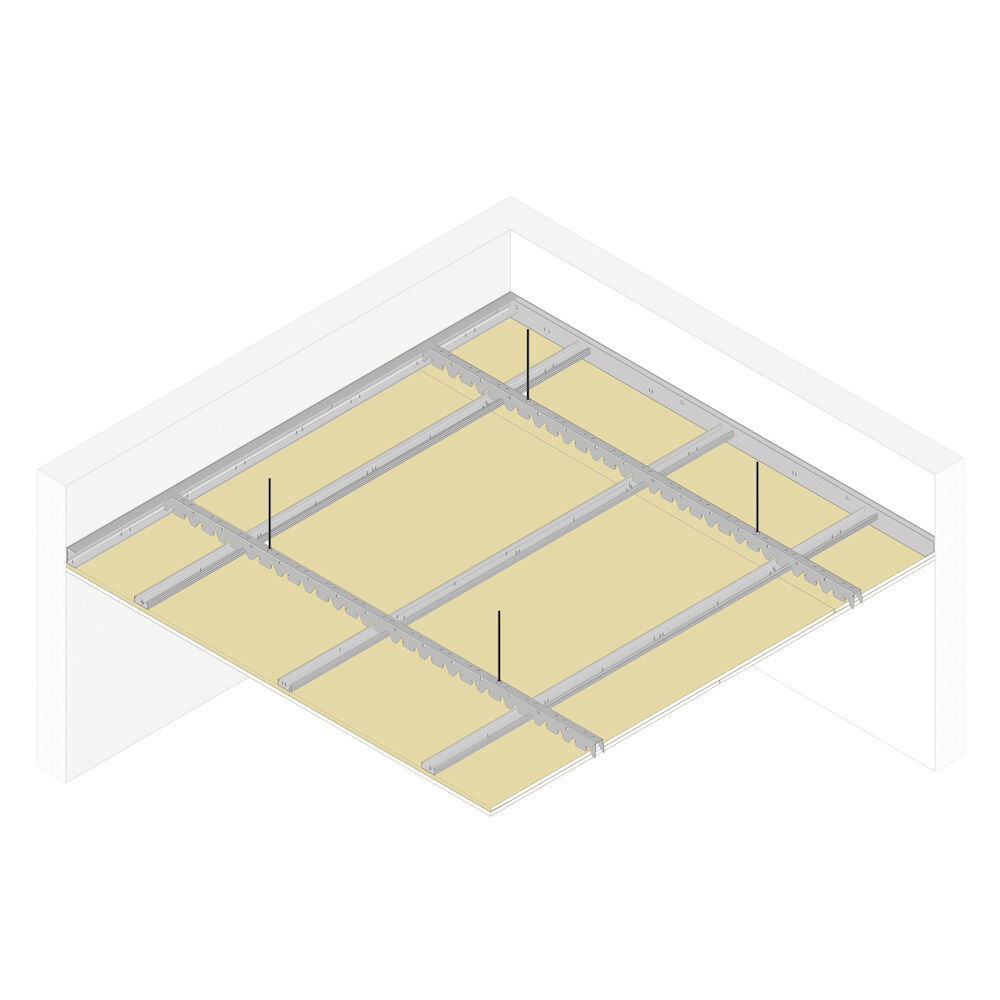

Suspended ceiling made up of a twin frame of galvanised sheet steel profiles installed at different levels. The primary frame is made up of Pladur® PH-45 hung from the framing by means of Ø 6 mm threaded rod, nut and locking nut. The secondary frame is made up of Pladur® T-45 profiles fitted perpendicularly to the lower part of the primary frame by fitting directly on the double, die-cut hangers of the Pladur® PH-45 profile and supported around the perimeter on Pladur® angular profiles or U track Clip, which is attached mechanically along its whole length. One or more Pladur® plasterboards are screwed perpendicularly onto the secondary frame. Commensurate amounts of anchors, hangers, hangers, resilient/acoustic perimeter joints, joint compounds and tapes, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design.) Installed according to Pladur® recommendations, UNE 102043 and CTE requirements.

BIM DOWLOAD AREA >

Further information

Airborne noise insulation - RA: 64 dBA
Impact noise insulation - Ln,w: 70 dB
RA increase (with 350 kg/m2 slab surface): 11 dBA
Ln,w reduction (with 350 kg/m2 slab surface): 8 dB
Maximum distance between hangers: 850 mm
System weigh: 15.9 kg/m²
Plasterboard: Pladur® H1
Board thickness: 15 mm
Type of basic profile: Profile PH-45 + Profile T-45
Number of layers: Simple
Acoustic report number: 10.05/300.169
Installation method: UNE 120043 Standard
Specifications:

Continuous suspended ceilings for interior areas with acoustic insulation. Offers greater ease of installation and reduced deformability for having a twin frame arranged crosswise to each other.
