Suspended ceiling Pladur® GL+T-45 1x15 N MW

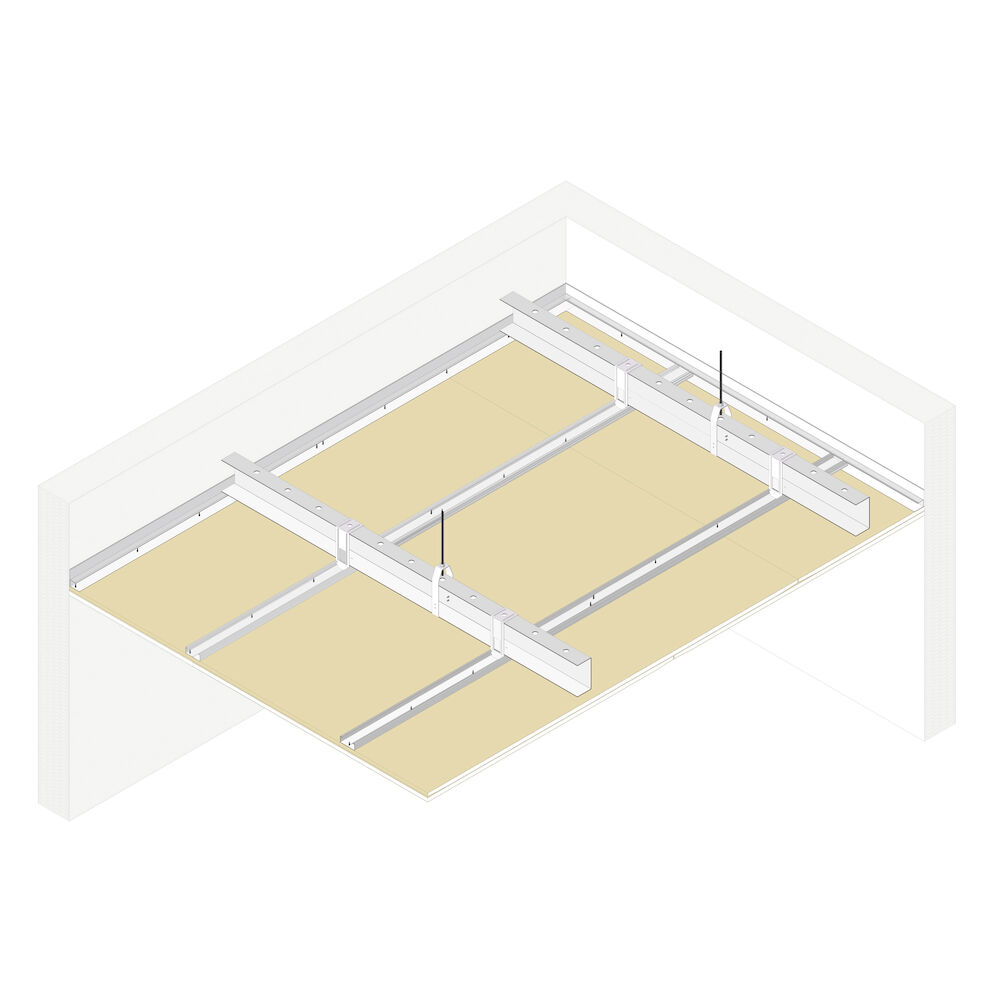

Suspended ceiling made up of a twin frame of galvanised sheet steel profiles installed at different levels. The primary frame is made up of Pladur® GL U track with a thickness of 1.5 mm, hung from the framing by means of M-50 hangers and Ø 6 mm threaded rod with nut and locking nut. The second frame is made up of Pladur® T-45 profiles fitted to the primary frame by means of Pladur® channel connectors GL and supported around the perimeter on Pladur® angular profiles and U track Clip, which are attached mechanically along its whole length. One or two Pladur® plasterboards are screwed perpendicular to the secondary frame. Commensurate amounts of anchors, hangers, screws, resilient/acoustic perimeter joints, joint compound, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.

BIM DOWLOAD AREA >

Further information

Airborne noise insulation - RA: 64 dBA
Impact noise insulation - Ln,w: 70 dB
RA increase (with 350 kg/m2 slab surface): 11 dBA
Ln,w reduction (with 350 kg/m2 slab surface): 8 dB
Maximum distance between hangers: 3000 mm
System weigh: 16 kg/m²
Plasterboard: Pladur® N
Board thickness: 15 mm
Type of basic profile: GL U Track + Perfil T-45
Number of layers: Simple
Acoustic report number: 10.05/300.173
Installation method: UNE 120043 Standard
Specifications:

Continuous suspended ceilings for interior areas with acoustic insulation. Especially suited for ceilings that need to have large lights between hangers.
