SUSPENDED CEILING PLADUR® GL+T-45 1x12,5 H1 MW

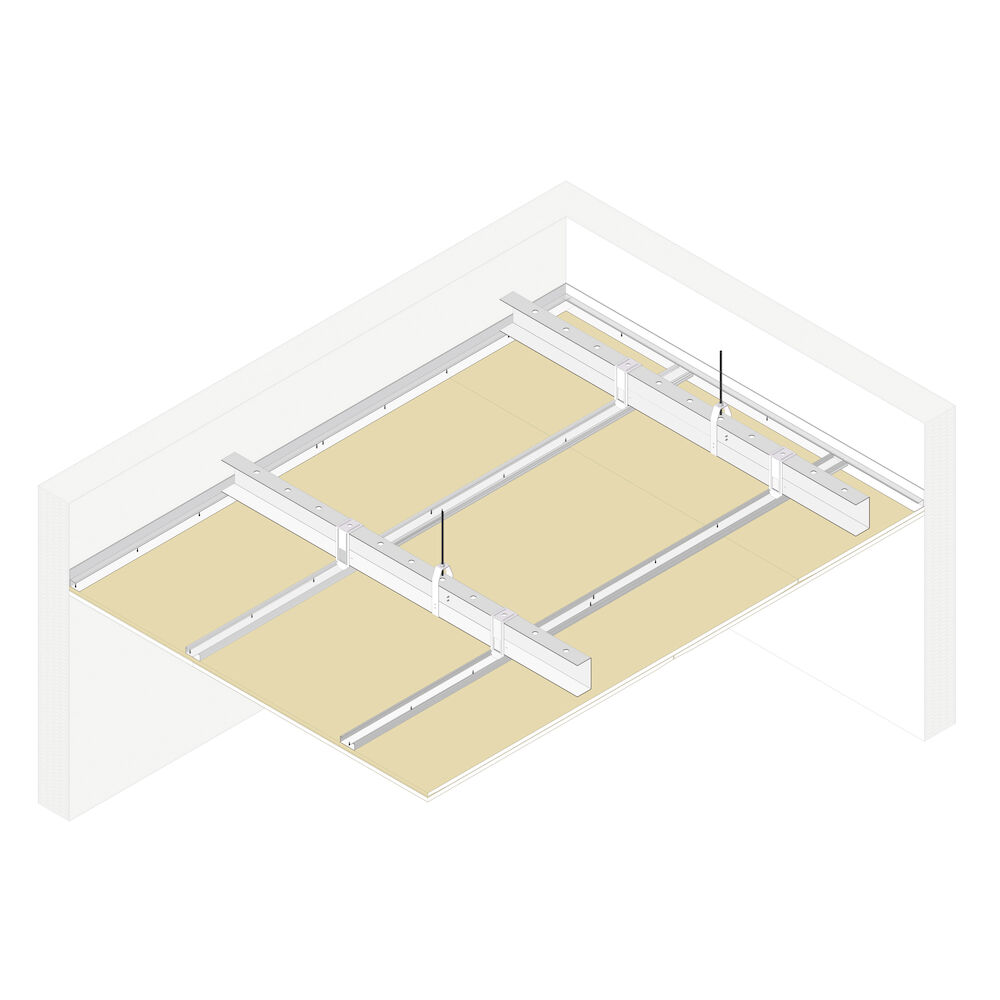

Suspended ceiling made up of a twin frame of galvanised sheet steel profiles installed at different levels. The primary frame is made up of Pladur® GL U track with a thickness of 1.5 mm, hung from the framing by means of M-50 hangers and Ø 6 mm threaded rod with nut and locking nut. The second frame is made up of Pladur® T-45 profiles fitted to the primary frame by means of Pladur® channel connectors GL and supported around the perimeter on Pladur® angular profiles and U track Clip, which are attached mechanically along its whole length. One or two Pladur® plasterboards are screwed perpendicular to the secondary frame. Commensurate amounts of anchors, hangers, screws, resilient/acoustic perimeter joints, joint compound, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.

BIM DOWLOAD AREA >

Further information
Ra (Sound Insulation): 63 dBA
Ln,w (Impact Sound Insulation): 70 dB
ΔRa (Increment Sound Insulation): 10 dBA
ΔLw (Reduction Impact Sound Insulation): 8 dB
Maximum hanger span: 3100 mm
Weight per m²: 14 kg/m²
Board: Pladur® H1
Type of basic profile: GL U Track + Perfil T-45
Number of Layers Text: Simple
Acoustic Report Number: 10.05/300.172
Installation Method: UNE 120043 Standard
Application:

Continuous suspended ceilings for interior areas with acoustic insulation. Especially suited for ceilings that need to have large lights between hangers.
