Suspended ceiling Pladur® T-60(D) 1x13 FON+ R15/30 nº4 BA MW

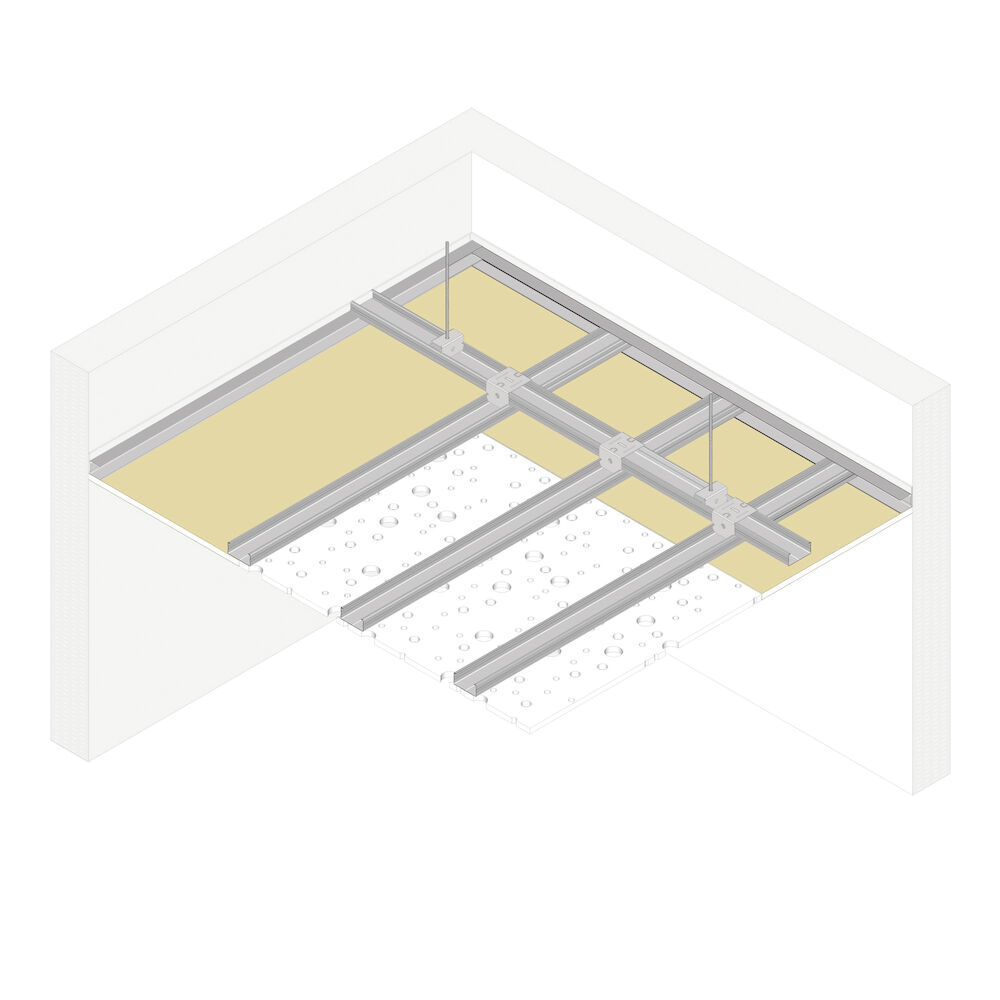

Suspended ceiling made up of a twin frame of galvanised sheet steel profiles installed at different levels (D). The primary frame is made up of Pladur® T-60 profiles hung from the framing by means of Pladur® T-60 hanger brackets and Ø 6 mm threaded rod. The secondary frame is made up of Pladur® T-60 profiles spaced 300 mm apart, hung from the primary frame by means of Pladur® T-60 hanger brackets supported around the perimeter on angular or U track profiles which are attached mechanically along their whole length. Pladur® Fon+ plasterboards are screwed perpendicularly onto the secondary frame. Commensurate amounts of anchors, hangers, hangers, screws, resilient/acoustic perimeter joints, joint compounds and tapes, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.

BIM DOWLOAD AREA >

Further information

Absorption coefficient - αm: 0.65
Absorption coefficient - αw: 0.65
Maximum distance between hangers: 800 mm
System weigh: 15 kg/m²
Plasterboard: Pladur® FON+ R15/30 nº4 BA
Board thickness: 12.5 mm
Type of basic profile: Profile T-60
Number of layers: Simple
Acoustic report number: AC15-26055261-21b
Installation method: UNE 120043 Standard
Specifications:

Continuous ceilings that require special acoustic conditioning for classrooms, meeting rooms, libraries, etc. Offers greater ease of installation and reduced deformability for having a twin frame arranged crosswise to each other. The joining of both frames by means of T-60 hanger brackets form a set (moveable joint) that allows adjustments in the installation of the plasterboards.
