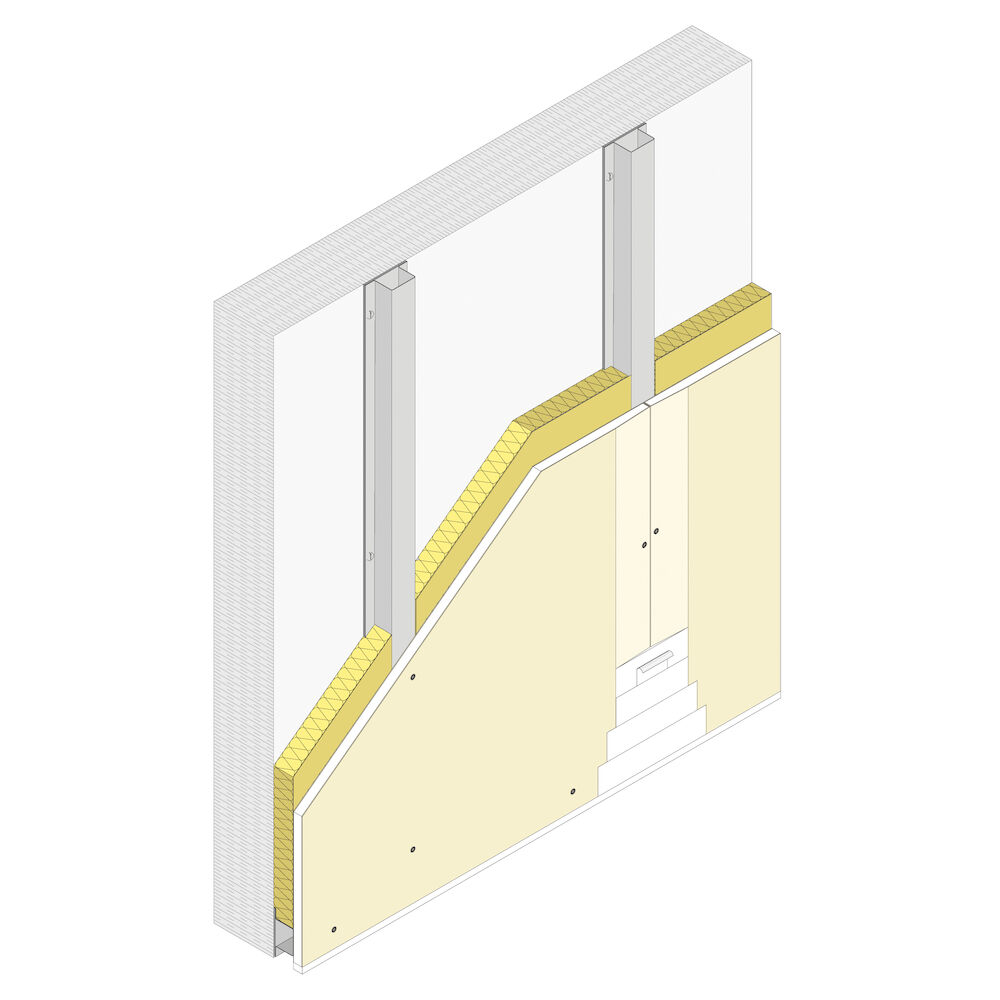

Semi-direct lining Pladur® M-70x30 1x12,5N

Semi-direct lining made up of a structure of galvanised sheet steel profiles over Pladur® furring fastened directly to the support wall, to whose exterior a Pladur® plasterboard is screwed. Commensurate amounts of Pladur® materials: screws, compounds, joint tape, watertight joints, etc. Completely finished with Quality Level 1 (Q1) for tile finishes, laminates, furring, etc. Also with Level 2 (Q2), Level 3 (Q3) or Level 4 (Q4), according to the surface finish (to be determined by the design.) Installed according to Pladur® recommendations, UNE 102043 Standard and CTE requirements.

BIM DOWLOAD AREA >

Further information

Maximum height: 9000 mm
Acoustic insulation - RA: 41 dBA
RA increase (with 100 kg/m2 load bearing wall): 3 dBA
Acoustic insulation - RA,tr: 38 dBA
RA,tr increase (with 100 kg/m2 load bearing wall): 2 dBA
System weigh: 12 kg/m²
Plasterboard: Pladur® N
Board thickness: 12.5 mm
Type of basic profile: Metal Furring 70 x 30
Number of layers: Simple
Acoustic report number: 10.05/200.125
Specifications:

Interior and façade wall lining. Used for all types of work, although it is highly suited for renovation and rehabilitation jobs.
