Suspended ceiling Pladur® NEO 48/1000x600 1x12,5 ULTRA L-TEC MW

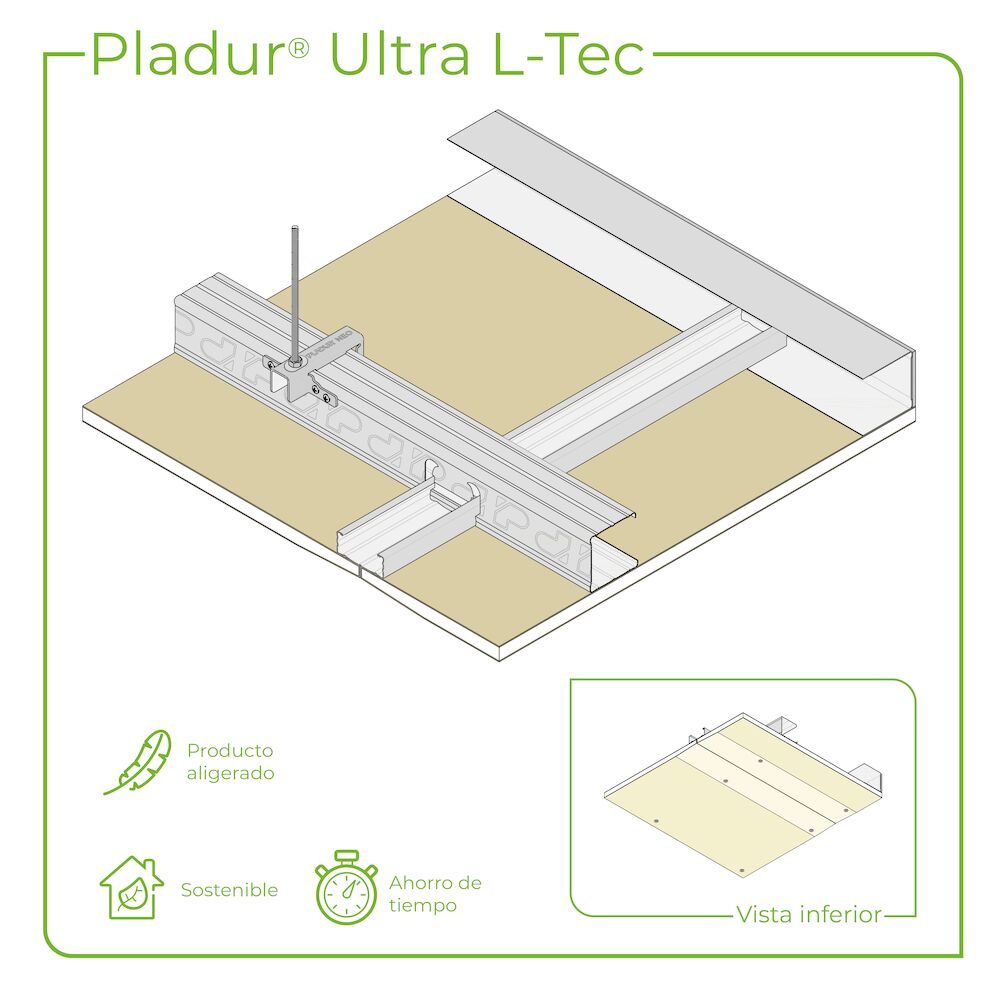

Ceiling consisting of a twin frame made from profiles installed at the same level. The primary frame of Pladur® NEO P profiles, suspended from the base structure using Pladur® NEO hanger clips and Ø 6 mm threaded rods supported on Pladur® NEO CP profiles at the perimeter. The secondary frame of Pladur® NEO S profiles assembled perpendicularly using clip joints to attach them to the primary frame in the punched core and attached to the Pladur® NEO CP perimeter profiles using Pladur® MM screws. A Pladur® Ultra L-TEC or Ultra L-TEC H1 board is screwed perpendicularly to the primary frame. Commensurate amounts of Pladur® materials: screws, compounds, joint tape, resilient joints, etc. Completely finished with Quality Level 2 (Q2), Level 3 (Q3), Level 4 (Q4), according to the surface finish (to be determined by the design). Justified by Technical Conformity TC-087066 certificate.

<FONT style=¿COLOR=#97D00; font-weight:bold;¿ >ÁREA DE DESCARGA BIM >

Suspended ceiling Pladur® NEO 48/1000x600 1x12,5 ULTRA L-TEC MW

Further information

Maximum distance between hangers: 1650 mm
System weigh: 7.9 kg/m²
Plasterboard: Pladur® Ultra L-TEC
Board thickness: 12.5 mm
Type of basic profile: Profile NEO P-48/600 + Profile NEO S-1.000
Number of layers: simple
Installation method: Technical Conformity TC-087066
Specifications:

Continuous suspended ceilings for interior rooms. They are easier to install and provide greater consistency due to the twin frames laid out crosswise to each other. In medium humidity areas, ceilings with Pladur® ULTRA L-TEC H1 plasterboards have a secondary framing centres of 400 mm.
